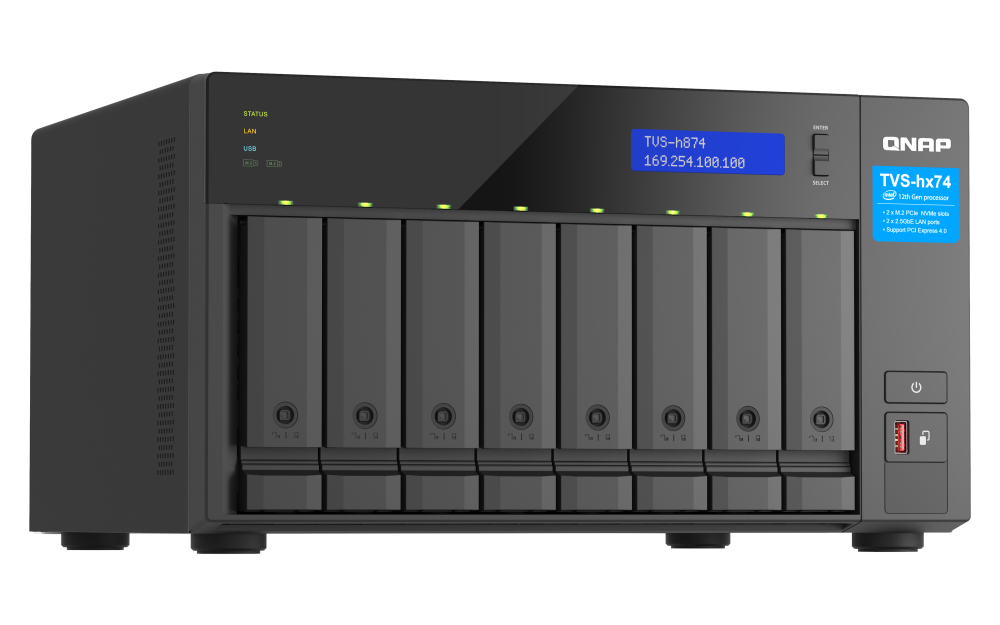

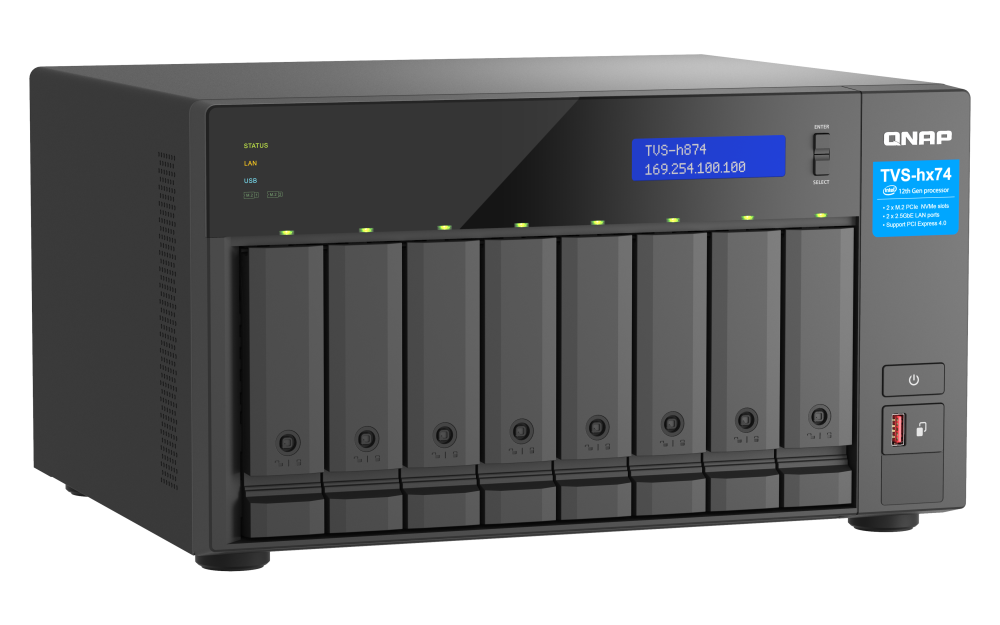

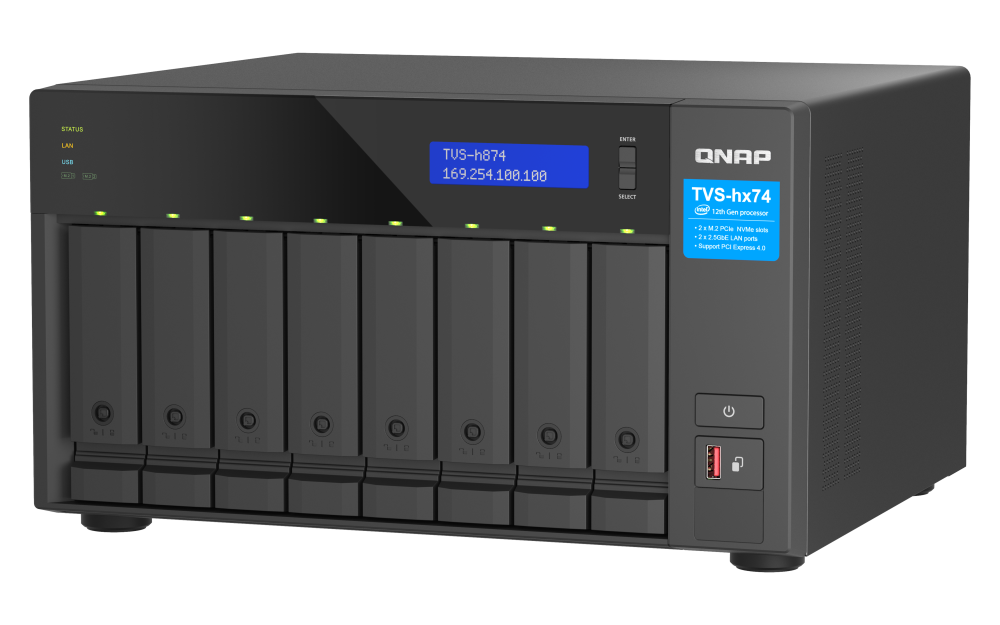

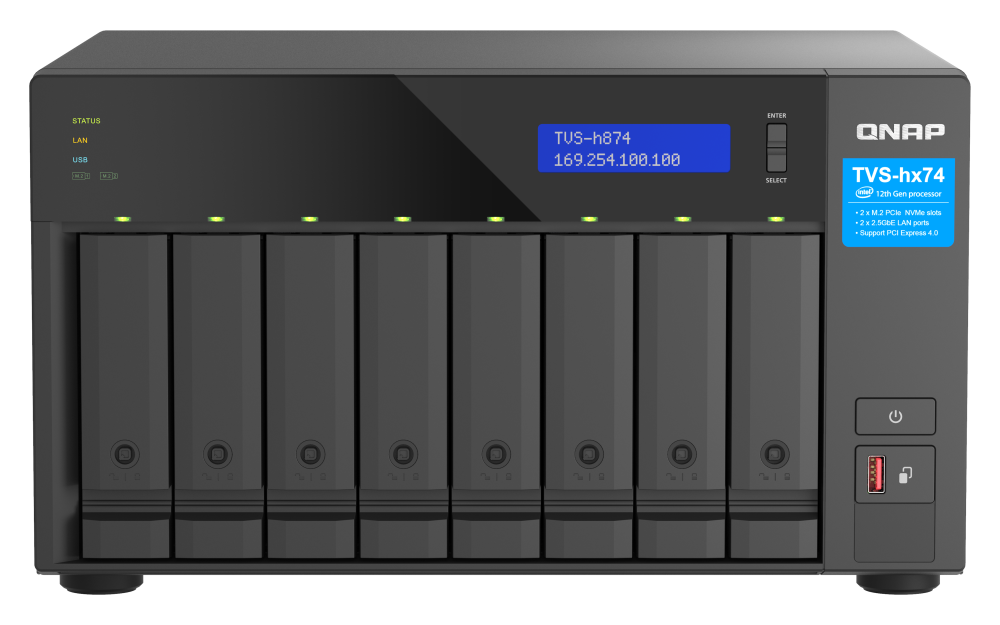

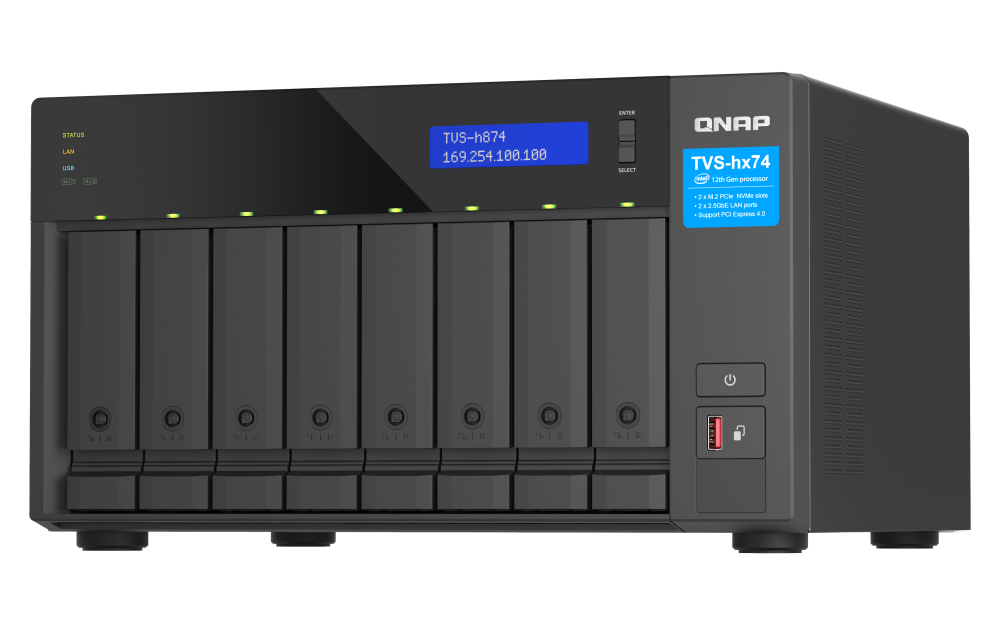

QNAP TVS-h874
Highly-reliable ZFS-based storage with PCIe Gen 4 expandability for 10/25GbE connectivity, M.2 NVMe SSD caching and multi-threads processors for virtualization applications
8-bay QuTS hero NAS, Intel® Core™ i5-12400 6-core/12-thread, up to 4.6GHz, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 250W PSU
Our Price: Request a Quote
8-bay QuTS hero NAS, Intel® Core™ i7 12-core (8 Performance cores + 4 Efficient cores) /20-thread, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 350W PSU
Our Price: Request a Quote
8-bay QuTS hero NAS, Intel® Core™ i9 16-core (8 Performance cores + 8 Efficient cores) /24-thread, 64GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 10GBASE-T + 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 350W PSU
Our Price: Request a Quote
Package Content
- TVS-h874 Storage System
- 1 x Ethernet cable
- 32 Flat Head Screw (for 3.5” HDD)
- 24 Flat Head Screw (for 2.5” HDD)
- 1 x Power Cord
- Quick Installation Guide (QIG)
Overview:
With an Intel® Core™ multicore-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h874 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h874 delivers an ideal NAS solution. The high-performance TVS-h874 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE/10GbE connectivity for high-speed virtualization network environments.
Available Models
-
TVS-h874-i5-32G-
Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz, 32 GB SODIMM DDR4 (2 x 16 GB) -
TVS-h874-i7-32G-
Intel® Core™ i7 12-core (8P+4E) /20-thread Processor, 32 GB SODIMM DDR4 (2 x 16 GB) -
TVS-h874X-i9-64G (By Request)-
Intel® Core™ i9 16-core (8P+8E) /24-thread Processor, 64 GB SODIMM DDR4 (2 x 32 GB), built-in 2 x 10GBASE-T LAN ports
M.2 PCIe Gen 4
Enable NVMe SSD caching or Edge TPU empowered AI image recognition.
2.5GbE/10GbE connectivity
2.5GbE ports (TVS-h874-i9-64G is preinstalled with a dual-port 10GBASE-T network card) excel in bandwidth-demanding applications (including massive file transfer, high-speed backup/restoration, multimedia streaming, and virtualization).
Flexible PCIe Gen4 expansion
PCIe slots allow for installing 2.5/5/10/25GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
Virtual machines and containers
Host multiple virtual machines and containers with optimized resource utilization.
Full HD HDMI™
Directly view creative works on an HDMI™ display. Enjoy smooth full HD media playback and real-time transcoding.
Faster image recognition with AI acceleration
The built-in Intel® OpenVINO™ and Intel® UHD Graphics help boost AI image recognition and offload CPU workloads.
Features:

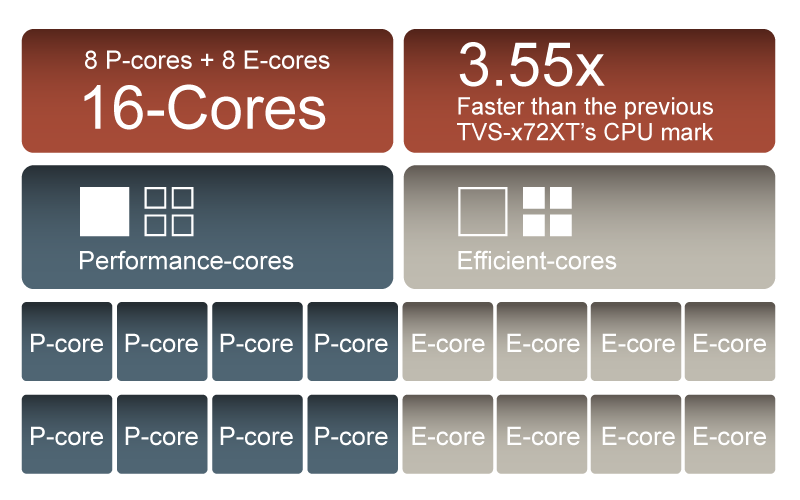

12th Gen Intel® Core™ Hybrid Technology for Optimized Performance
12th Gen Intel® Core™ CPUs leverage the breakthrough Performance Hybrid Architecture, combining Performance-cores with Efficient-cores to greatly enhance the multi-tasking efficiency of x86 architecture. Multiple threads also provide a smoother experience for virtualization applications.
• TVS-h874-i7-32G：Intel® Core™ i7-12700E processor with 8 Performance-cores, 4 Efficient-cores, and 20 threads.
• TVS-h874X-i9-64G：Intel® Core™ i9-12900E processor with 8 Performance-cores, 8 Efficient-cores, and 24 threads.
Boost NAS performance with M.2 SSDs or TPU
The TVS-h874 has two M.2 PCIe slots, enabling SSD caching or SSD storage pools for improved performance, or other applications.
Note: M.2 Accelerators are sold separately
Install M.2 NVMe SSDs for cache acceleration
The TVS-h874 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance.
Accelerate AI–powered image recognition with TPU
By leveraging a Google Edge TPU to QNAP AI Core (AI-powered engine for image recognition), the TVS-h874 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
System drive for QuTS hero operating system
Use the NVMe SSD storage pool as the QuTS hero operating system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
Build a High-Speed 10GbE/2.5GbE Network Environment
TVS-h874 has two 2.5GbE ports (TVS-h874-i9-64G is preinstalled with a dual-port 10GBASE-T network card). QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
A fast 2.5GbE/10GbE NAS
A QNAP NAS featuring one or more 2.5GbE/10GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade computers and servers
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE port to laptops
Laptops and upgrade-limited computers can use QNAP’s portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
A switch that supports 2.5GbE/10GbE
QNAP’s 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
Abundant I/O capabilities with PCIe Gen3 expansion

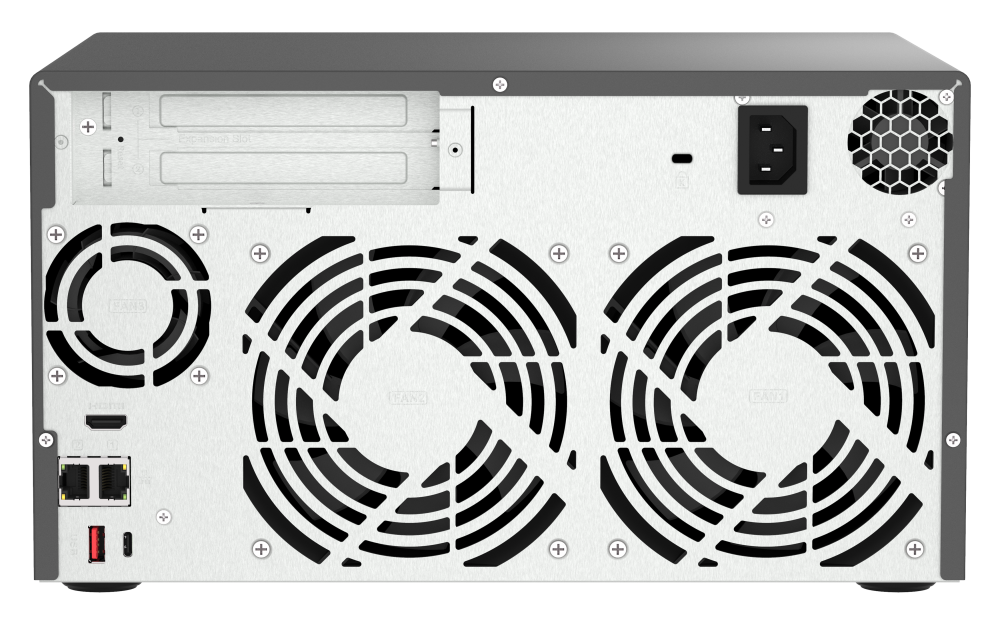

The TVS-h874 has two PCIe slots that allow for installing various expansion cards for expanding application potential.
25GbE/10GbE network cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.
QM2 cards
Adds M.2 caching, Edge TPU or 2.5GbE/10GbE network connectivity to the NAS for optimized performance and bandwidth.
Graphics cards
Supercharge your video editing and transcoding or enable GPU pass-through to virtual machines
Ultimate visual experience with Full HD HDMI™ output and real-time video transcoding
HDMI™ output
The TVS-h874 features HDMI™ output that supports Full HD, providing great benefits for applications like video production/editing or industrial design that demands high resolution and intensive media storage, transfer, and display.
View NAS media or virtual machines on an TV
By connecting the TVS-h874 to an HDMI™ display, you can directly watch multimedia content saved on the NAS, operate virtual machines from Virtualization Station, or enjoy multimedia using HD Player or third-party players.
Real-time transcoding and display
The TVS-h874 features Intel® UHD Graphics that supports hardware decoding and real-time transcoding* for converting videos to universal file formats that can be smoothly played on multiple devices.
*The TVS-h874 provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors (including playback software, file formats, system usage, and available bandwidth).
Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TVS-h874 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
QuMagie photo management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.
With CPU+ GPU acceleration
200% Performance boost
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
| Data integrity is key | Data reduction improves storage efficiency and performance | Multi-level cache technology with both read and write |
|---|---|---|
| QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many Times (WORM) is also supported. | Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance. | Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security. |
| RAID Z enables robust data protection | QSAL (QNAP SSD Antiwear Leveling) enhances data protection | App Center ecosystem extends NAS functionality |
| Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. | RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability | Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TVS-h1288X. |

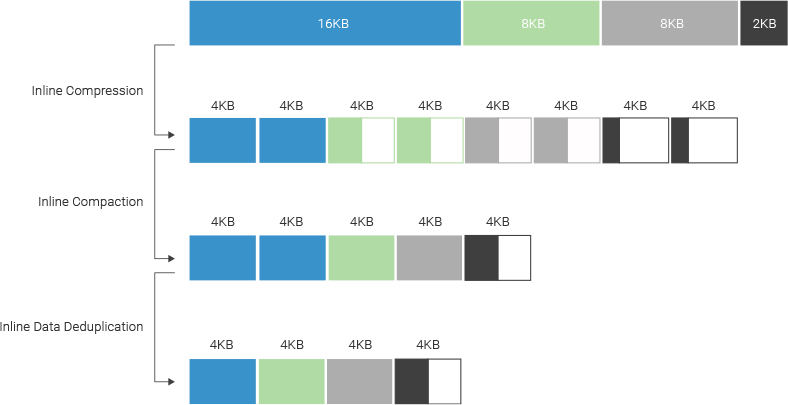

Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TVS-h874 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
Inline Data Deduplication requires a NAS with at least 16GB memory (at least 32GB memory is recommended for optimal performance).
Comprehensive backup and disaster recovery solution
The TS-h1677AXU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.
Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-h1677AXU-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
Cloud backup for NAS
Use Hybrid Backup Sync to back up NAS data to myQNAPcloud Storage or other mainstream cloud space. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Real-time SnapSync
Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data. RPO is minimal to achieve real-time disaster recovery.
Multi-version snapshots mitigate ransomware threats
The TS-873AeU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Up to 65,536 snapshots
QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.
Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TVS-h874 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-h2287XU-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
Conatiner Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.
Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.
High availability (HA) and failover with dual-NAS architecture
Create a HA cluster with two TVS-h874 — one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.
Easy management and monitoring
Use the High Availability Manager app to easily configure, remove, or rebuild clusters.
Guaranteed data consistency
Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).
Ensured continuity of critical business
The passive server takes over within 1 minute if the active server fails (RTO < 60 secs).
Comprehensive security and privilege settings
The TS-873AeU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-873AeU-RP through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
Simplified privilege settings
The TS-873AeU-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-873AeU-RP as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.
QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.
Security Counselor
A security portal for the TS-873AeU-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Malware Remover
Regularly scan your TS-873AeU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
TeamViewer remote access
TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.
The best file storage and collaboration center
The TVS-h874 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.
File Station
Manage, access, and share all the files in the TVS-h874 and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Qsync
Make any file uploaded to a TVS-h874 available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Qfiling
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TVS-h874 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Free embedded channels
2 IP camera channels
Total camera channels
Scalable with optional licenses*
Subscription-based
Monthly US $1.99 /channel
Video format
MP4
Mobile app
QVR Pro Client and mobile app
Scalable storage
NAS expansion units
Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TVS-h874 storage as needed to accommodate data and business growth.
Attach QNAP expansion enclosures
Connect expansion enclosures to the TVS-h874, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TVS-h874 while also centrally managing files on the NAS, cloud storage, and remote devices.
Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
More productivity-boosting applications
The TS-1655 provides an App Center that includes feature-rich apps to expand your NAS potential!
QuObjects
Run a high-performance S3 compatible development environment on your TS-1655 to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
Proxy Server
By using a high-capacity TVS-h874 as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.
Qcontactz
Centrally manage all your contacts, import contacts from Google™, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.
QuFTP
The TVS-h874 can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
S.M.A.R.T. and back block scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Seagate® IronWolf™ Health Management
When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
Flexibly switch to QTS operating system
The TS-h1677AXU-RP also supports QTS - QNAP’s standard NAS operating system – that provides great everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1677AXU-RP.
QTS
Suited for cross-teams file sync, and HDD-SSD hybrid storage applications
QuTS hero
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications
Speed:
High-performance Intel® Core™ processor
The TVS-h874 adopts an Intel® Core™ multi-core Processor with Intel® UHD Graphics 770 to increase multi-tasking capabilities, offering SMBs a secure, reliable, and high-performance NAS solution.
Processor
Intel® Core™ i9 16-core/24-thread Processor
Memory
Supports up to 64 GB dual-channel DDR4 memory
Connections
Three USB 3.2 Gen 2 (10Gbps) ports
Encryption Engine
Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
Transmission Performance
| 2 x 25GbE SMB sequential throughput (1M) |
Read 3313 MB/s |
Write 3232 MB/s |
| 1 x 25GbE SMB sequential throughput (1M) |
Read 2949 MB/s |
Write 2954 MB/s |
| 2 x 2.5GbE SMB sequential throughput (1M) |
Read 590 MB/s |
Write 591 MB/s |
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TVS-h874 (Intel® Core™ i7-12700) with QXG-25G2SF-CX6
OS: QTS hero h5.0.0
Volume type : 8 x Samsung 870 EVO 1 TB SATA , RAID 5, thick volume
Client PC : Windows Server 2019 Standard, Intel Xeon W1250 3.3GHz, 32GB RAM
IOmeter : RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding
Hardware Specifications:
| TVS-h874X-i9-64G (By Request) | TVS-h874-i7-32G | TVS-h874-i5-32G | |
|---|---|---|---|
| CPU | Intel® Core™ i9 16-core (8P+8E) /24-thread Processor | Intel® Core™ i7 12-core (8P+4E) /20-thread Processor | Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz |
| CPU Architecture | 64-bit x86 | ||
| Graphic Processors | Intel® UHD Graphics 770 | Intel® UHD Graphics 730 | |
| Floating Point Unit | |||
| Encryption Engine | (AES-NI) | ||
| Hardware-accelerated Transcoding | |||
| System Memory | 64 GB SODIMM DDR4 (2 x 32 GB) | 32 GB SODIMM DDR4 (2 x 16 GB) | |
| Maximum Memory | 64 GB ( 2 x 32 GB) | ||
| Memory Slot | 2 x SODIMM DDR4 | ||
| Flash Memory | 5GB (Dual boot OS protection) | ||
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s | ||
| Drive Compatibility |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
||
| Hot-swappable | (Not supported M.2 SSD) | ||
| M.2 Slot | 2 x M.2 2280 PCIe Gen 4 x4 slots | ||
| SSD Cache Acceleration Support | |||
| GPU pass-through | |||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) | ||
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card | ||
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card | ||
| Wake on LAN (WOL) | |||
| Jumbo Frame | |||
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 Card dimensions for PCIe slot 1~Slot 2：185 x 131.15 x 18.76 mm / 7.28 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
||
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
||
| HDMI Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) | ||
| Form Factor | Tower | ||
| LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port | ||
| LCD Display/ Button | |||
| Buttons | Power, Reset, USB Copy | ||
| Dimensions (H x W x D) | 188.2 × 329.3 × 280.8 mm | ||
| Weight (Net) | 7.3 kg | ||
| Weight (Gross) | 8.95 kg | ||
| Operating temperature | 0 - 40 °C (32°F - 104°F) | ||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | ||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | ||
| Power Supply Unit | 250W, 100-240V | ||
| Power Consumption: Disk Standby Mode | 58.127 W | ||
| Power Consumption: Operating Mode, Typical | 81.865 W Tested fully populated with WD10EFRX hard drives. |
||
| Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
||
| System Warning | Buzzer | ||
| Kensington Security Slot | |||
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 3500 | ||
Download the QNAP TVS-h874-i5-32G Datasheet (.PDF)
Download the QNAP TVS-h874-i7-32G Datasheet (.PDF)
Download the QNAP TVS-h874X-i9-64G Datasheet (.PDF)
Extend Hardware Warranty Up to 5 Years
The TVS-h874 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
8-bay QuTS hero NAS, Intel® Core™ i5-12400 6-core/12-thread, up to 4.6GHz, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 250W PSU
Our Price: Request a Quote
8-bay QuTS hero NAS, Intel® Core™ i7 12-core (8 Performance cores + 4 Efficient cores) /20-thread, 32GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 350W PSU
Our Price: Request a Quote
8-bay QuTS hero NAS, Intel® Core™ i9 16-core (8 Performance cores + 8 Efficient cores) /24-thread, 64GB SO-DIMM DDR4(max.64GB), 8 x 2.5"/3.5" SATA HDD/SSD, 2 x 10GBASE-T + 2 x 2.5GbE, 2x M.2 PCIe Gen4 x4 slots, PCIe Gen4 slots, HDMI 1.4b, 350W PSU
Our Price: Request a Quote
