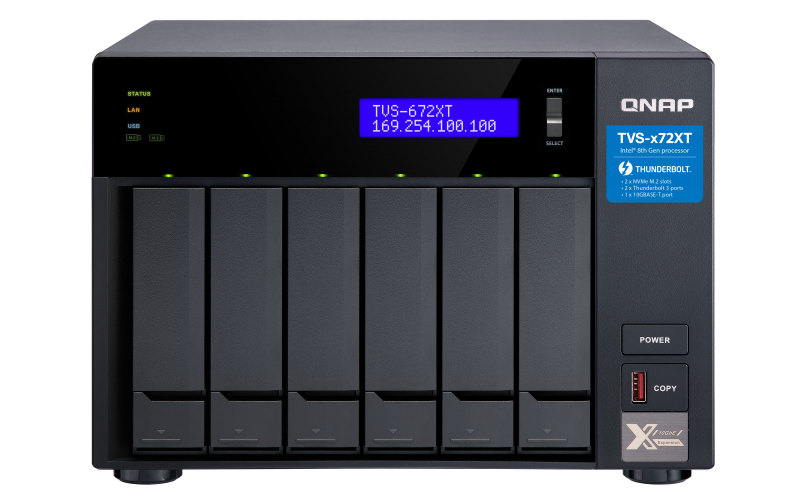

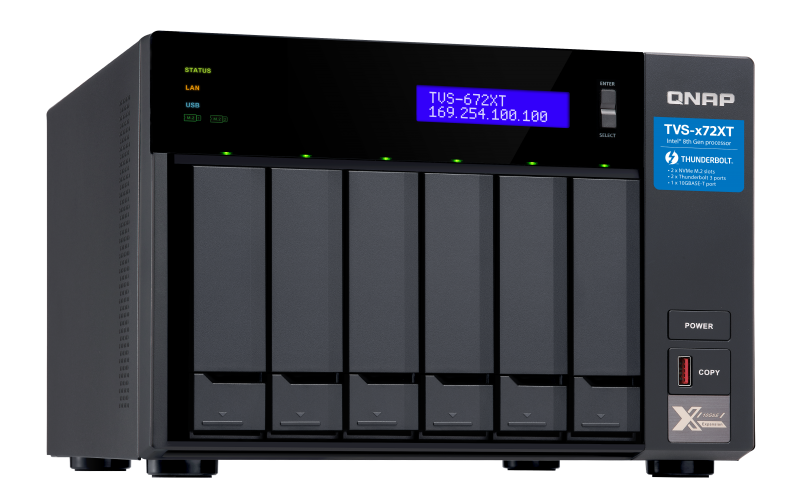

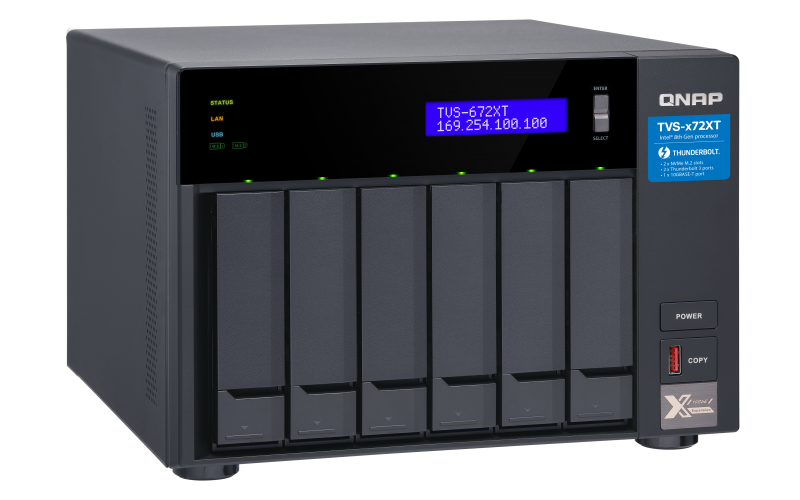

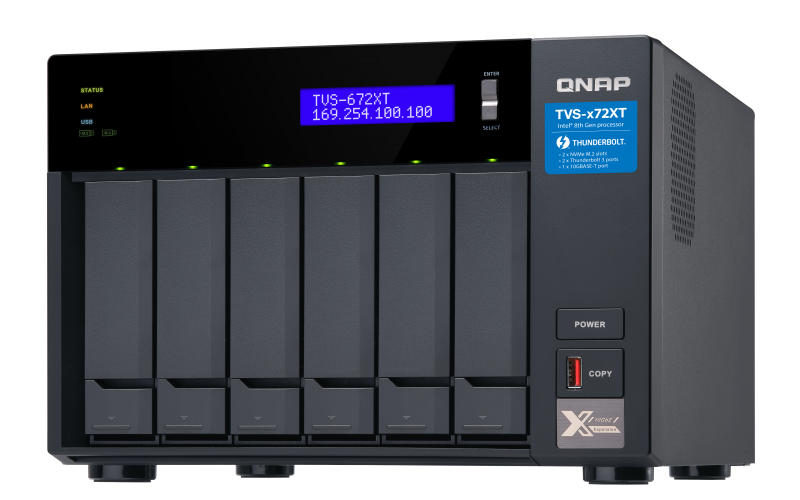

QNAP TVS-672XT
Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots

Sorry, this product is no longer available. Please Contact Us for a replacement.

Please Note: All Prices are Inclusive of GST

Want to build a custom bundle? Contact us!

-->

Package Content

  • TVS-672XT Storage System
  • 2 x Gigabit Ethernet Cables
  • 1 x 10Gbase-T Ethernet cable
  • 1 x Power Cords
  • Flat Head Screw (for 3.5” HDD)
  • Flat Head Screw (for 2.5” HDD)
  • 2 x M.2 SSD Heatsink
  • Quick Installation Guide (QIG)

Overview:

Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-672XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-672XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-672XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

Extend NAS functionality with a graphics card and other PCIe devices

The TVS-672XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.

icon gpu

Graphic cards

Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.

icon m2

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

icon 10GbE

10GbE/ 40GbE adapters

Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration

icon wifi

Wireless networks cards

Use the QNAP QWA-AC2600 wireless adapter with WirelessAP Station to transform the TVS-672XT into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

Obtain performance benefits from M.2 SSD caching

Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-672XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).

Improve random data access speeds with an SSD cache

SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.

Maximize the value of SSDs with Qtier Technology

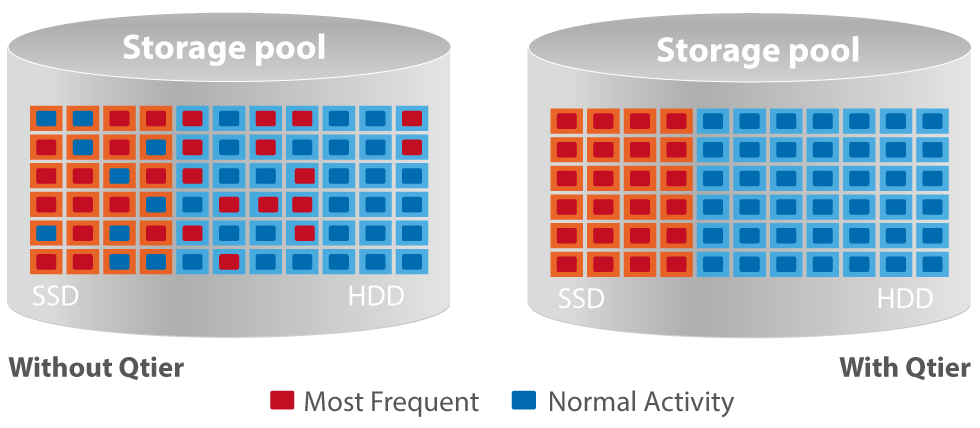

Qtier™ Technology empowers the TVS-672XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

overview-2

overview-2

Potentially attain performance and endurance levels similar to enterprise-grade SSDs

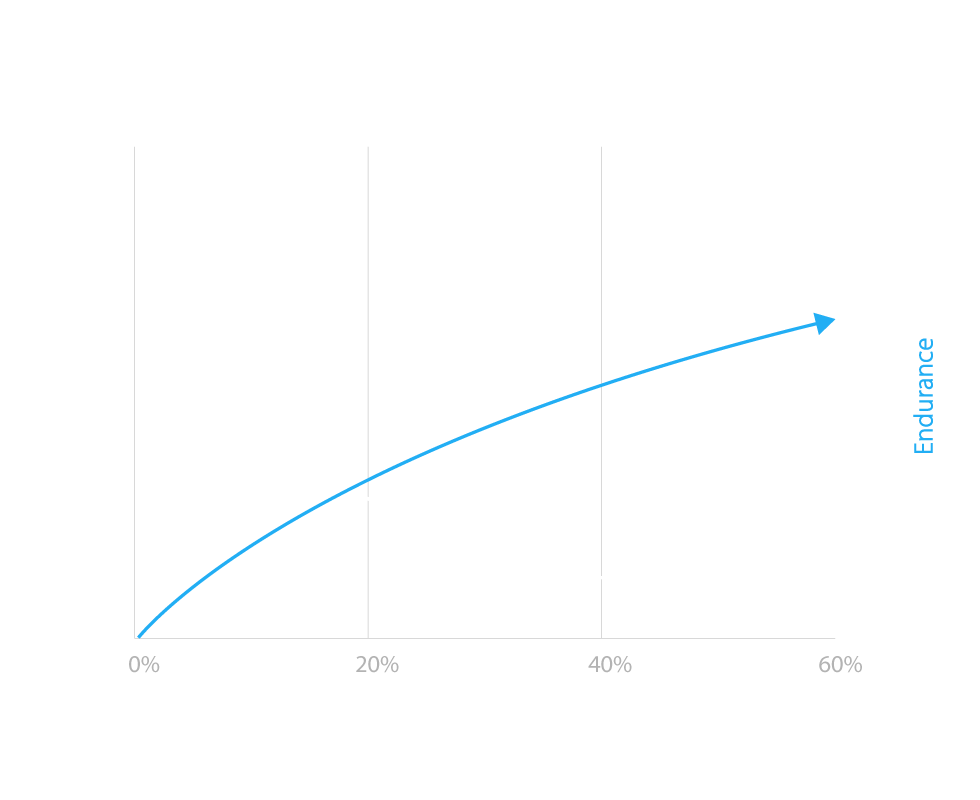

With SSD prices continuing to become more affordable, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-672XT, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.



Flexibly manage virtual and physical networks

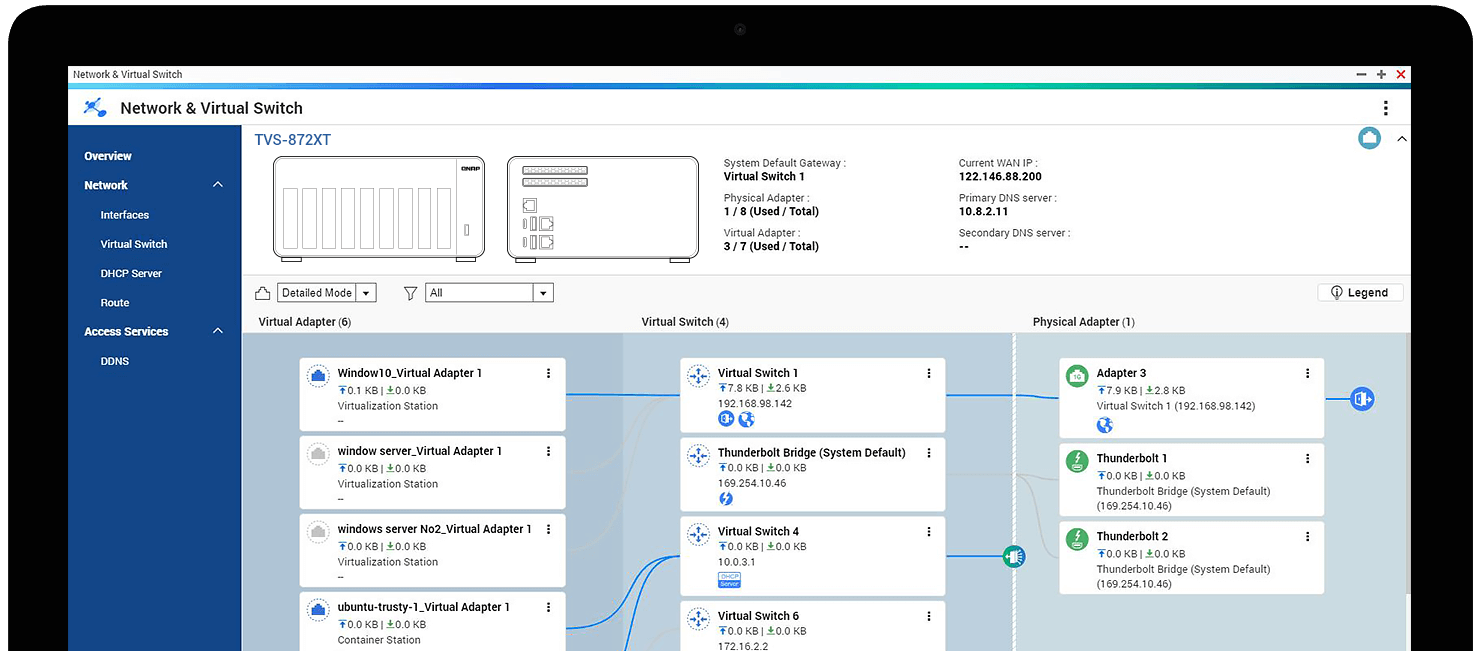

The Network & Virtual Switch app manages physical network interfaces (including network adapters and Thunderbolt™ ports) and virtual adapters (virtual machines and containers) and their communications, providing a visualized topology that clearly presents the connections of physical and virtual networks. The flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TVS-672XT, virtual machines and containers whenever needed.

overview-2

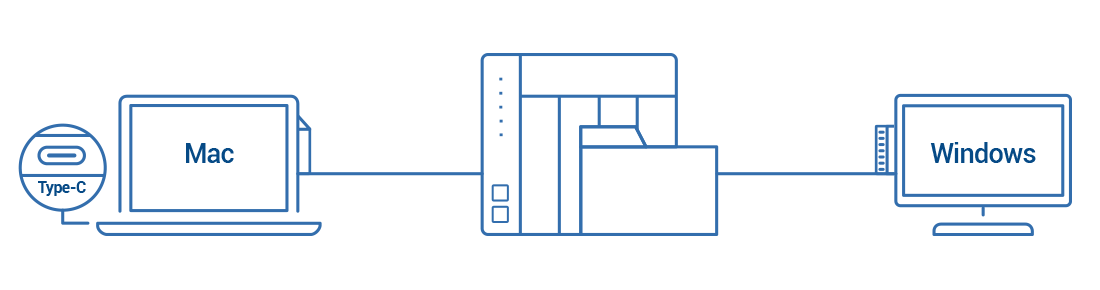

Collaboration station for Mac and Windows

The TVS-672XT is the perfect match for Thunderbolt™-equipped Mac® and Windows® users - especially for photographers, filmmakers, and graphic designers who require 4K media storage, instant sharing and have bandwidth-intensive workflows. Up to 2 Thunderbolt™ devices can be connected to the TVS-672XT to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro® X 10.3 (and later) supports file sharing via SMB, Windows® users and other devices utilizing Thunderbolt™ 3, 10GbE or GbE connections can join the editing workflow more efficiently.

Note: Thunderbolt cables are sold separately. Thunderbolt™ 3 (USB-C) to Thunderbolt™ 2 converters may not be compatible with certain Windows PC models.

overview-2


The best storage solution for the 10GbE-equipped iMac Pro

The iMac Pro® is the first Mac® computer that includes a 10Gb Ethernet port, marking a milestone in the growing mainstream demands for 10GbE connectivity. As the TVS-672XT comes with both 10GbE and Thunderbolt™ 3 ports, it provides an exceptional storage base for iMac Pro® users as they can flexibly choose between Thunderbolt™ 3 and 10GbE connections to suit their application and device needs.


overview-2

Real-time transcoding for an excellent cross-device media experience

Featuring advanced Intel® UHD Graphics 630, the TVS-672XT supports triple-channel 4K H.264 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be smoothly played on multiple devices*.

*The TVS-672XT's hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

Features:

High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing.

5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.

PCIe expandability allows the use of an entry-level graphics card to accelerate NAS video processing and GPU computing.

Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.

4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Specifications:

CPU Intel® Core™ i3-8100T 4-core 3.1 GHz processor
Architecture: 64-bit
Graphics: Intel® UHD Graphics 630
Encryption Acceleration (AES-NI)
System Memory 8 GB SODIMM DDR4 (2 x 4 GB)
Maximum Memory 32 GB ( 2 x 16 GB)
Memory Slot 2 x SO-DIMM DDR4
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 4 GB (Dual boot OS protection)

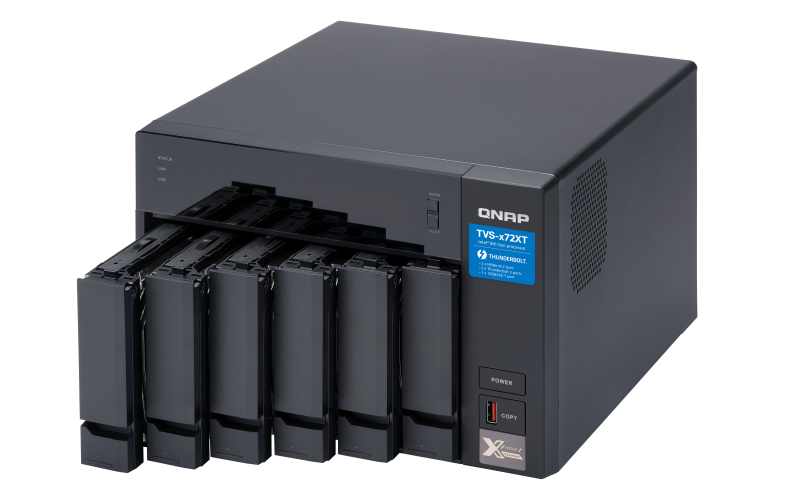

Drive Bay Hot-swappable 6 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives
M.2 SSD Slot 2 x M.2 2280 PCIe (Gen3 x2) NVMe slots

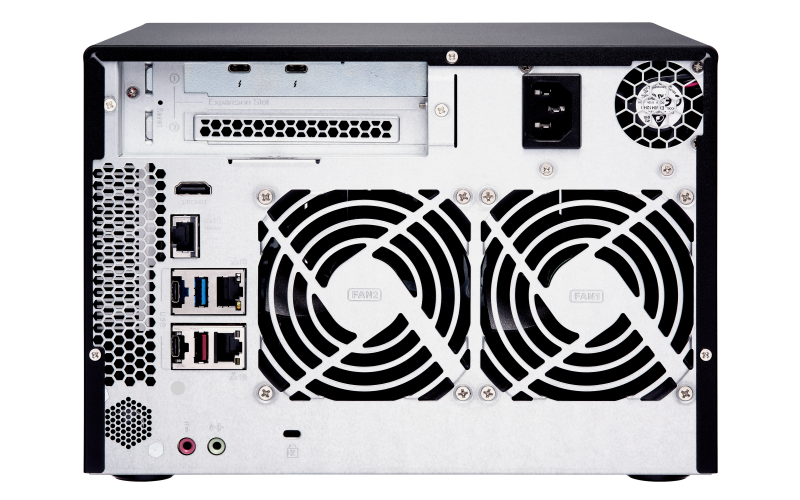

Thunderbolt Port 2 x Thunderbolt™ 3 ports
10 Gigabit Ethernet Port 1 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M

Note: Please use CAT6a or CAT 7 LAN cables (sold separately) to achieve 10GbE speed
Gigabit Ethernet Port 2 x RJ45
PCIe Slot Slot 1: PCIe Gen3 x16 (CPU)
Slot 2: PCIe Gen3 x4 (PCH)

Note: Slot 1 is pre-installed with a Thunderbolt 3 adapter
USB Port 1 x USB 3.0
2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
HDMI Output 1 x HDMI 2.0, up to 3840 x 2160, @60Hz
Audio • 1 x 3.5 mm dynamic microphone jack
• 1 x 3.5 mm line-out jack
• 1 x speaker

Note: You cannot use the speakers and the line-out jack simultaneously.
IR sensor , supports QNAP RM-IR004 remote control
LED Indicators HDD 1-6, Status, LAN, USB port, M.2 port
Buttons Power, Reset, USB One-touch-copy
Form Factor Tower
Dimensions (H x W x D) 188.2 x 264.3 x 279.6 mm
7.4 x 10.4 x 11 inch
Weight Net: 6.55 kg (14.4 lbs)
Gross: 8.07 kg (17.79 lbs)
Power Supply Unit 250W, 100-240V
Power Consumption (W) HDD standby: 26.52 W
In operation: 45.6 W
(with WD10EFRX drives fully populated)
Fan System: 2 x 9.2cm fan (12V DC)
CPU: 2 x 6cm blower fan
Sound Level Sound pressure (LpAm): 23.8 dB(A)
System Warning Voice prompts or Buzzer
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
