QNAP TS-432PXU
Quad-core 1.7GHz rackmount NAS with dual 10GbE SFP+ and dual 2.5GbE ports for SMB IT environment


TS-432PXU TS-432PXU TS-432PXU TS-432PXU
TS-432PXU
QNAP Products
TS-432PXU
QNAP 1U 4-Bay ARM-based 2.5G &10G NAS, Quad Core 1.7GHz, 2GB DDR3 RAM, 2 x 10GbE SFP+, 2 x GbE, Single Power Supply (not upgradeable)
AL324 quad-core 1.7 GHz rackmount NAS with 250W PSU, 2GB DDR4 UDIMM RAM (max 16GB), SATA 6Gb/s, 2x 10GbE SFP+, 2x 2.5GbE, 1x PCIe Gen2 x2 slot
#TS-432PXU-2G
Our Price: Request a Quote
Get a Quote

Please Note: All Prices are Inclusive of GST

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • QNAP TS-432PXU Storage
  • 1 x Ethernet cable
  • 1 x Power cords
  • 16 x Flat head screw (for 3.5" HDD)
  • 12 x Flat head screw (for 2.5" HDD)
  • Quick Installation Guide

Package Content

  • QNAP TS-432PXU Storage
  • 1 x Ethernet cable
  • 1 x Power cords
  • 16 x Flat head screw (for 3.5" HDD)
  • 12 x Flat head screw (for 2.5" HDD)
  • Quick Installation Guide

Overview:

With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 x2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-432PXU supports file backup and synchronization, secure snapshot protection, and Google G Suite™ and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.



Available Models

  • TS-432PXU-2G-
    Annapurna Labs Alpine AL-324 quad-core 1.7 GHz processor, 2GB RAM, 1U rackmount

10GbE SFP+ and 2.5GbE

Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing.

HBS

HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.

Boxafe

Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ G Suite and Microsoft 365®.


Snapshots

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

PCIe card

Expand the application potential of the TS-432PXU by installing a compatible PCIe card.

storage capacity

Increase the storage capacity of the TS-432PXU with QNAP TR RAID expansion enclosures or TL JBOD.

Features:

Higher performance x faster throughput

The TS-432PXU is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-432PXU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.

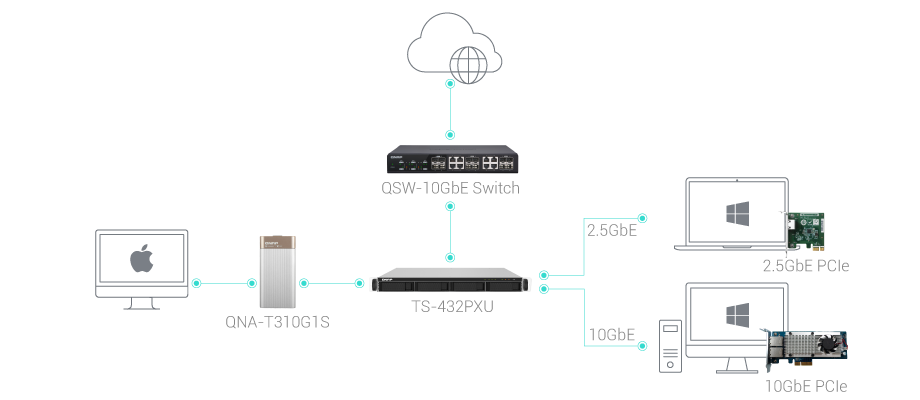

Upgrade your network to increase team efficiency

QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.

high-speed-network

Boost NAS performance with SSDs

As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-432PXU supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.


Balance performance and capacity

Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.

storage-pool

Extend SSD lifespan

SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.

software-defined-ssd

Multi-point file backup, access and sync

HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-432PXU into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-432PXU will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

hbs-qsync image

Easily find and automatically organize files and photos

The TS-432PXU provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.

qsirch_icon

File search

Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.

qumagie icon

Photo management

QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.

qfiling icon

Auto archiving

Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.

Secure Google G Suite™ and Microsoft 365® backup

The convenience of Software as a Service (SaaS) solutions such as Google G Suite™ and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-432PXU includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite™ and Microsoft 365® to provide an extra layer of data protection for business cloud data.

backup_Boxafe

Low Latency Access to Cloud Data with Cloud Storage Gateways

By deploying cloud storage gateways and enabling local caching on the TS-432PXU, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.


HybridMount

HybridMount File-Based Cloud Gateway

Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD

VJBOD Cloud Block-Based Cloud Gateway

VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.

Flexibly expand storage capacity whenever needed

The storage capacity of the TS-432PXU can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-432PXU can also be used to expand the storage space of other QNAP NAS.

PCIe expandability for greater application potential

The TS-432PXU includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.

QM2 Card

QM2 Card

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

Network Adapter

Network Adapter

Add additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.

USB Card

USB Card

Add QNAP USB 3.2 Gen 2 expansion card to benefit from 10Gbps data transfer performance with newer, faster USB devices for transferring large media files.

Extend hardware warranty up to 5 years

The TS-432PXU is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage by up to five years.

Hardware Specifications:

  TS-432PXU-2G
CPU AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 quad-core 1.7GHz processor
CPU Architecture 64-bit ARM
Floating Point Unit
Encryption Engine
System Memory 2 GB UDIMM DDR4 (1 x 2 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x Long-DIMM DDR4
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 4x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot Optional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.2 Gen 1 port 4
Form Factor 1U Rackmount
LED Indicators HDD 1-4, Status, LAN, Storage expansion
Buttons Power, Reset
Dimensions (HxWxD) 1.73 x 17.28 x 19.65 inch
Weight (Net) 14.4 lbs
Weight (Gross) 21.01 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W PSU, 100 - 240V
Power Consumption: Operating Mode, Typical 39.558 W
Tested with drives fully populated.
Fan 2 x 40mm, 12VDC
Sound Level 38 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) 700
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Documentation:

Download the QNAP TS-432PXU-2G Datasheet (.PDF)

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
Warranty Icon

Extend hardware warranty up to 5 years

The TS-432PXU is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage by up to five years.

Pricing Notes:

  • All Prices are Inclusive of GST
  • Pricing and product availability subject to change without notice.
