QNAP TS-h765eU
Compact 1U short-depth rackmount NAS, with E1.S/M.2 PCIe NVMe slots and 10GbE expandability
1U 4-bay 3.5" SATA + 3 x E1.S/PCIe M.2 2280 short depth 12" rackmount NAS, Intel® Atom® x7405C quad-core, 8GB RAM SODIMM DDR5 (1 x DDR5 SODIMM slots, Max. 16GB), 2 x M.2 PCIe Gen3 x1 slots, 2 x 2.5GbE, 1 x USB 3.2 Gen1, 1 x USB 2.0, 1 x 150W PSU
Our Price: Request a Quote
Package Content
- QNAP TS-432X
- Ethernet Cable x 1/li>
- AC Adapter x 1
- Power Cord x 1
- Flat head screw x 16 (for 3.5" HDD)
- Flat head screw x 12 (for 2.5" HDD)
- Quick Installation Guide
Overview:
The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.
Available Models
- TS-h765eU-8G-
Intel Atom x7405C 4-core, up to 3.4GHz, 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC
Space-saving
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)
DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
Expand to two 10GbE ports
LFlexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Easy storage expansion via USB
Connect a QNAP's short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
Long-term supply
The TS-h765eU will be available and supported by QNAP for an extended period, up to 2031.
Extend Hardware Warranty Up to 5 Years
The TS-432X is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
TS-432X-
The TS-432X adopts a quad-core processor with built-in 4 GB of memory, offering excellent read/write performance at low power consumption, making it reliable for hosting versatile NAS applications in office.
Tested in QNAP Labs. Figures may vary by environment.
Operating System:
ZQuTS hero operating system
Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability.
Automatic repair of corrupted data
ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.
Data immutability
Enable WORM (Write Once, Read Many) to prevent written data from being overwritten, modified, or deleted, effectively mitigating ransomware threats.
Power failure protection
ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.
Data reduction
Inline data deduplication1 reduces storage consumption for maintaining optimal disk capacity.
Prevent simultaneous SSD failure
The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.
Features:
Powerful expansion with E1.S / M.2 PCIe NVMe slots
The TS-h765eU comes with three E1.S / M.2 PCIe NVMe slots that offer unparalleled NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h765eU to support high-speed 10GbE networking and pair it with M.2 SSDs.
Create SSD storage pool
UCreate E1.S / M.2 PCIe NVMe SSD volumes to boost intensive data transfer and access performance.
Enable SSD caching
Built-in 4 GB non-ECC RAM, upgradable to 16 GB and supports ECC RAM
Upgrade to 10GbE
Install QXG-ES10G1T 10GbE network module for faster network connectivity.
Encryption Engine
Add high-speed connectivity to computers by using the Thunderbolt 3 to 10GbE adapter or USB 3.2 Gen 1 to 5GbE adapter. Servers and desktop computers can install PCIe network expansion cards that support 10G/5G/2.5G/1G/100M Multi-Gig. QNAP 10GbE switches allow for high-speed collaboration in device-dense environments.
Drive health check & failure prediction
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

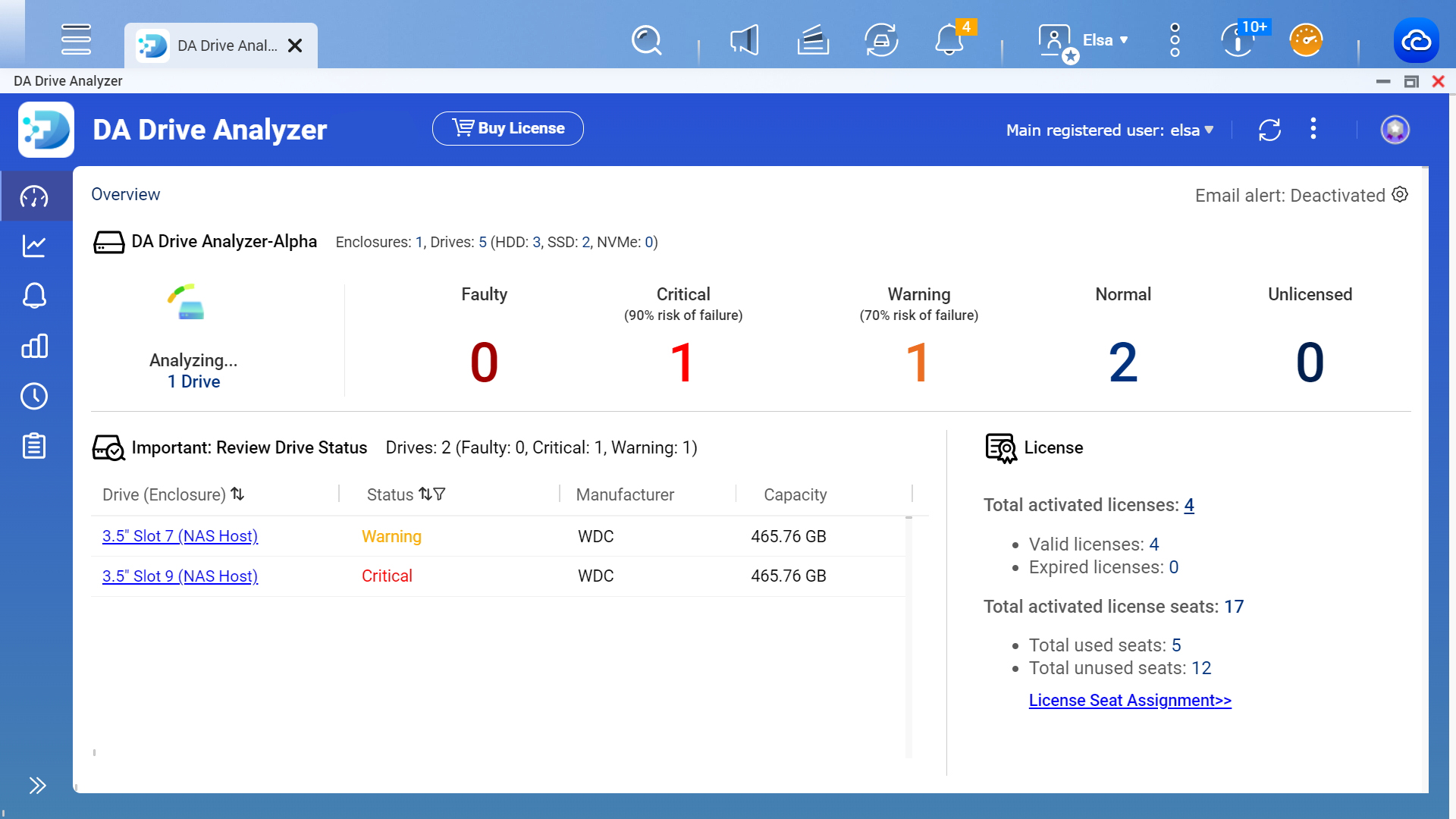

Comprehensive overview.
Quickly check life prediction scores and drive health status.

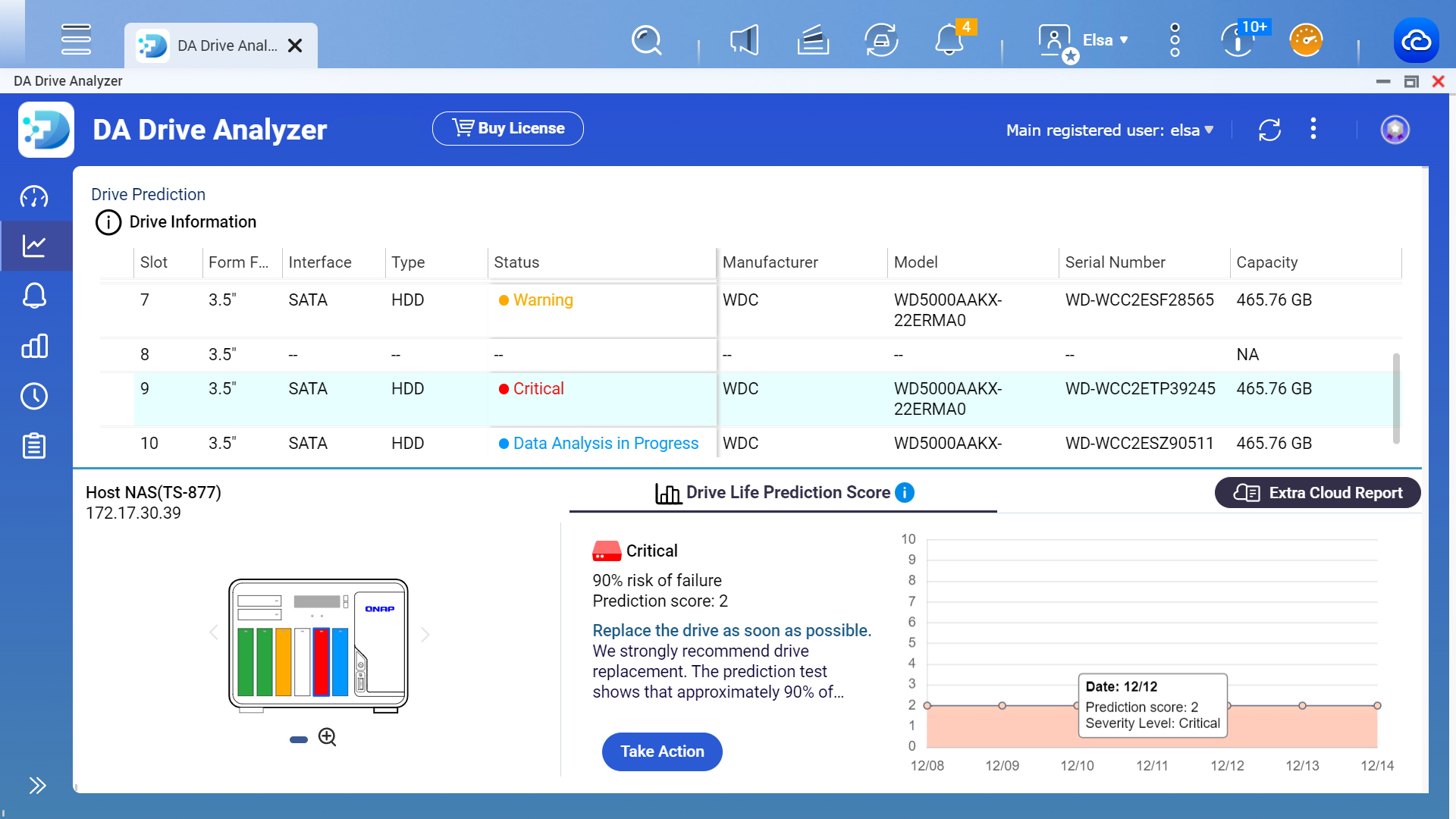

Visual insights
Identify drive information in each drive bay/slot, and view recommendations.

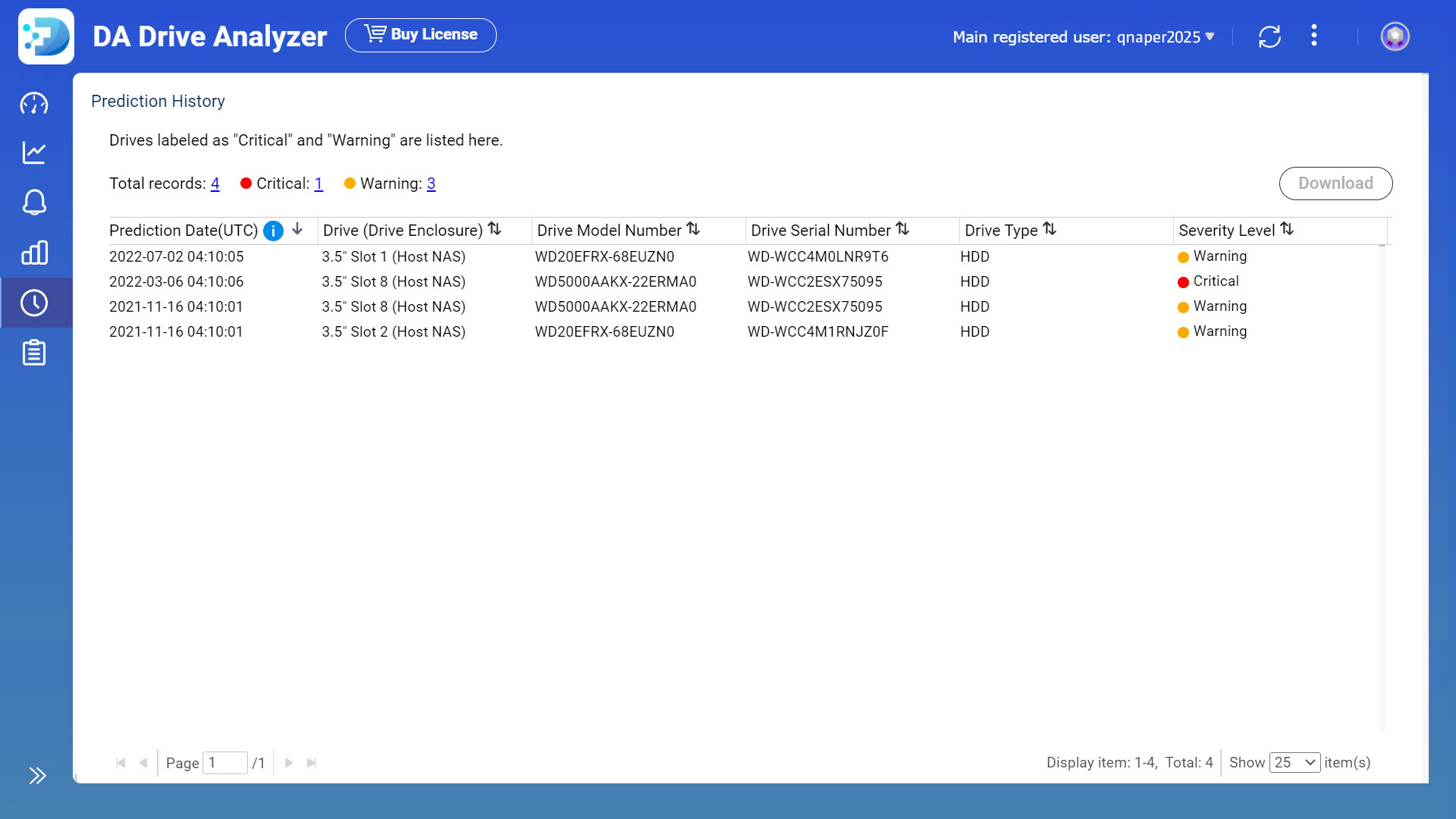

Advanced diagnostics & alerts
Acquire proactive detection and receive replacement warnings based on 24-hour disk usage data collection.
Hardware Specifications:
Download Datasheets| TS-h765eU-8G | |
|---|---|
| CPU | Intel Atom x7405C 4-core, up to 3.4GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x SODIMM DDR5 |
| Flash Memory | 8GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives E1.S NVMe PCIe SSDs M.2 2280 NVMe PCIe SSDs |
| Hot-swappable | (Not supported M.2 SSD) |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2(2.5G/1G/100M) |
| SSD Cache Acceleration Support | |
| M.2 Slot | 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) |
| 10 Gigabit Ethernet Port | Optional via QXG-ES10G1T |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | 1U Short Depth Rackmount |
| LED Indicators | Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD1~3 |
| Buttons | Power, Reset/td> |
| Dimensions (HxWxD) | 43 × 430 × 292.1 mm |
| Weight (Net) | 4.51 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 150W, 100-240V |
| Fan | 3 x 40mm |
| System Warning | Buzzer |
| Standard Warranty | 3 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting. QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site. Designs and specifications are subject to change without notice.
