QNAP TS-464U-RP
Intel® quad-core rackmount NAS with dual-port 2.5GbE and PCIe
expandability for high-speed transmission and virtualization
applications
1U 4-Bay rackmount NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB RAM onboard (not expandable), 4 x 3.5"/2.5" SATA 6Gb/s drive bays, 1 x PCIe Gen3 x2 slot, 2 x 2.5GbE, 1 x HDMI 1.4b, 2 x USB 3.2 Gen2 Type-A+ 2 x USB 2.0, 2 x 250W redundant PSU
Our Price: Request a Quote
Please Note: All Prices are Inclusive of GST
Want to build a custom bundle? Contact us!
Package Content
- TS-464U-RP Storage System
- 1 x Ethernet cable
- 48 Flat Head Screw (for 3.5” HDD)
- 36 Flat Head Screw (for 2.5” HDD)
- 2 x Power Cord
- 2 x Hanger
- Quick Installation Guide (QIG)
Overview:
Powered by an Intel® Celeron® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime.
Available Models
-
TS-464U-RP-4G-
Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz, 4 GB SODIMM DDR4 (1 x 4 GB), redundant power supply
-
TS-464U-RP-8G-
Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz, 8 GB on board (non-expandable), redundant power supply
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
PCIe expandability
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
Snapshots
Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.
License-free virtualized environment
Host multiple containerized apps to run a wide range of applications and services.
Drives Auto-Tiering
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
Flexible expansion
Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units.
TS-464U-RP
The TS-464U-RP is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports 8GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.
Tested in QNAP Labs. Figures may vary by environment.
Operating System:
The TS-464U-RP comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

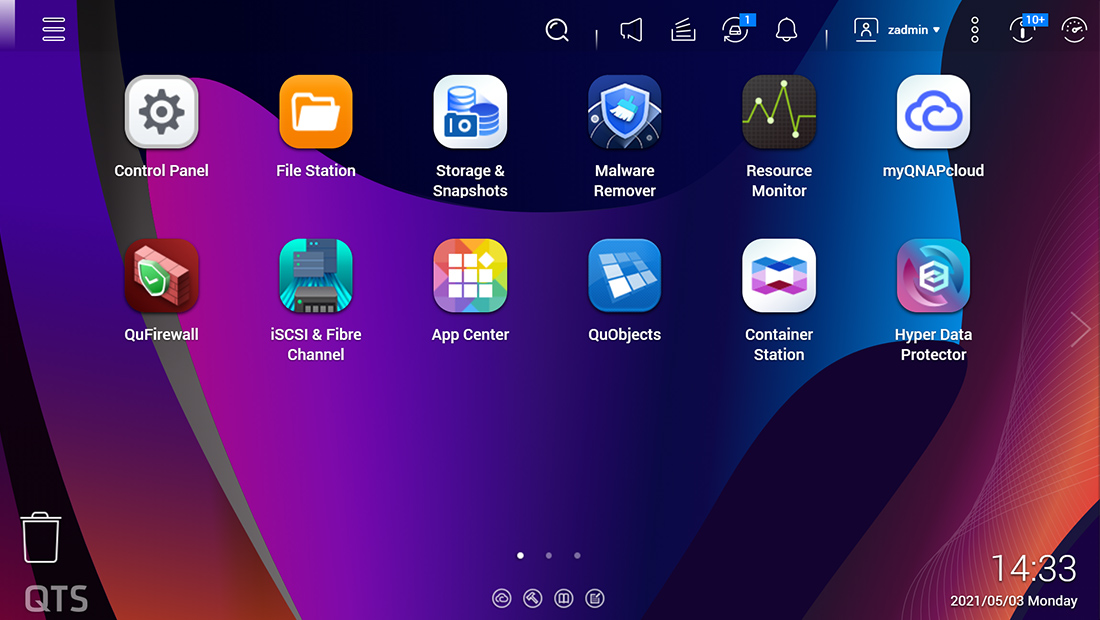

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

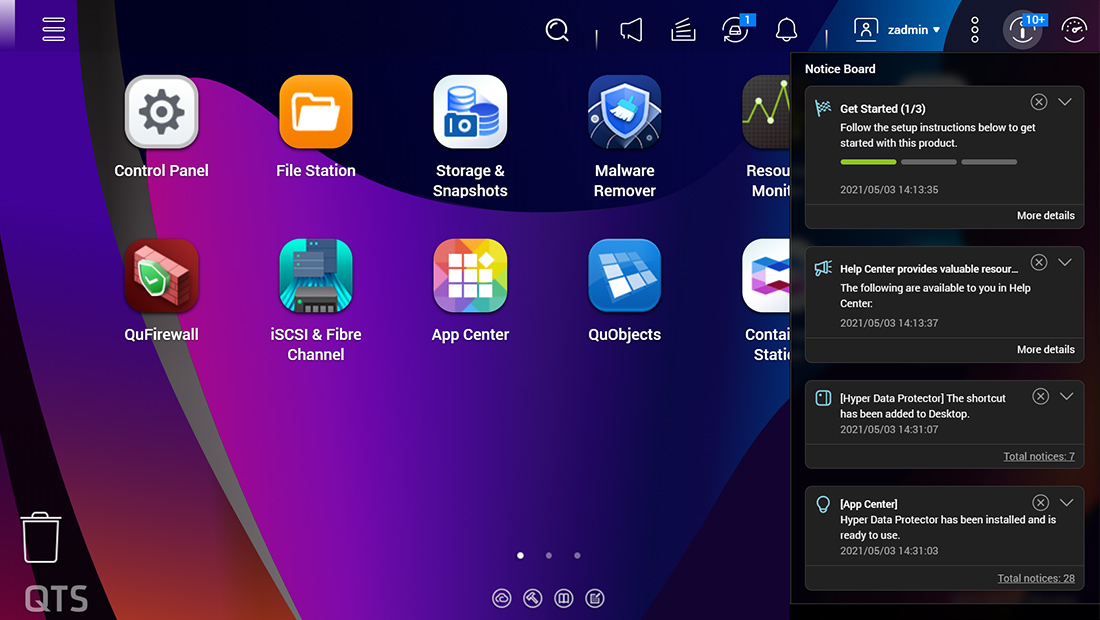

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

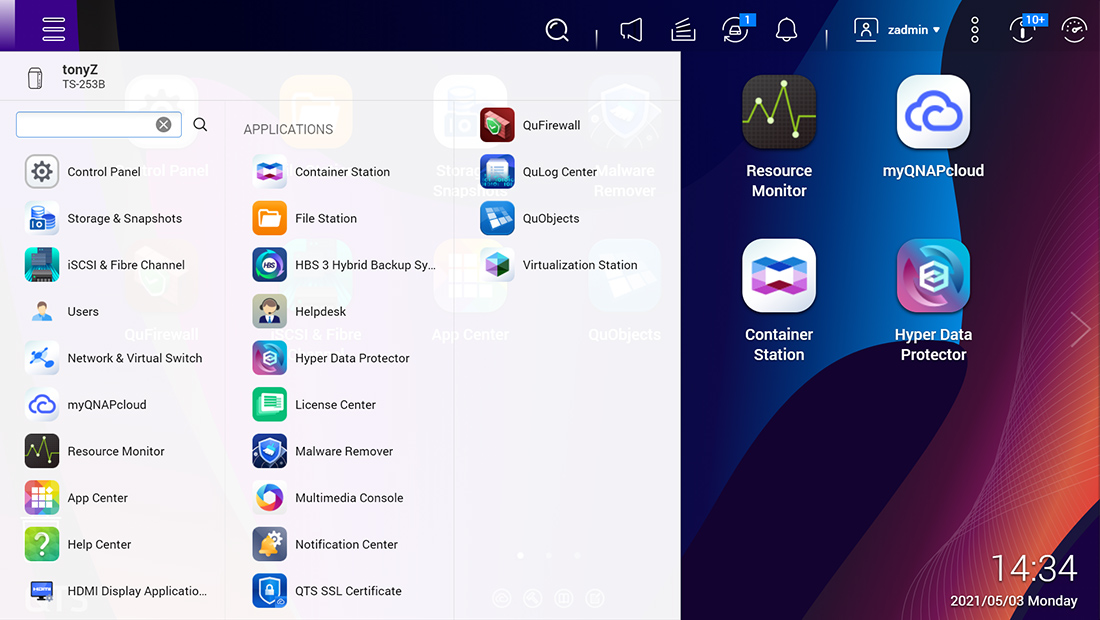

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Extend Hardware Warranty Up to 5 Years
The TS-464U-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Features:
Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-464U-RP storage as needed to accommodate data and business growth.
Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-464U-RP, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-464U-RP while also centrally managing files on the NAS, cloud storage, and remote devices.
Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

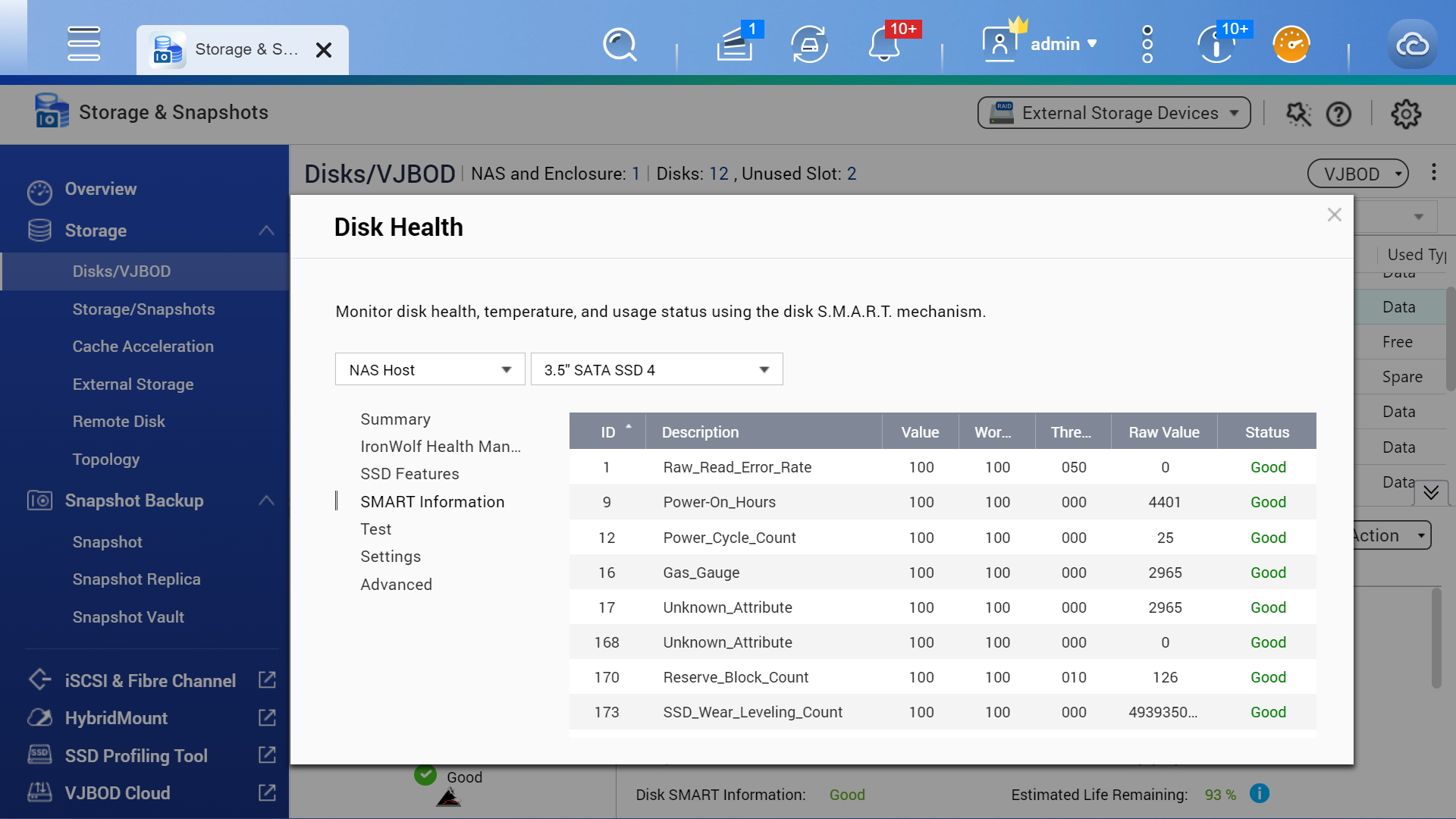

S.M.A.R.T. and back block scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

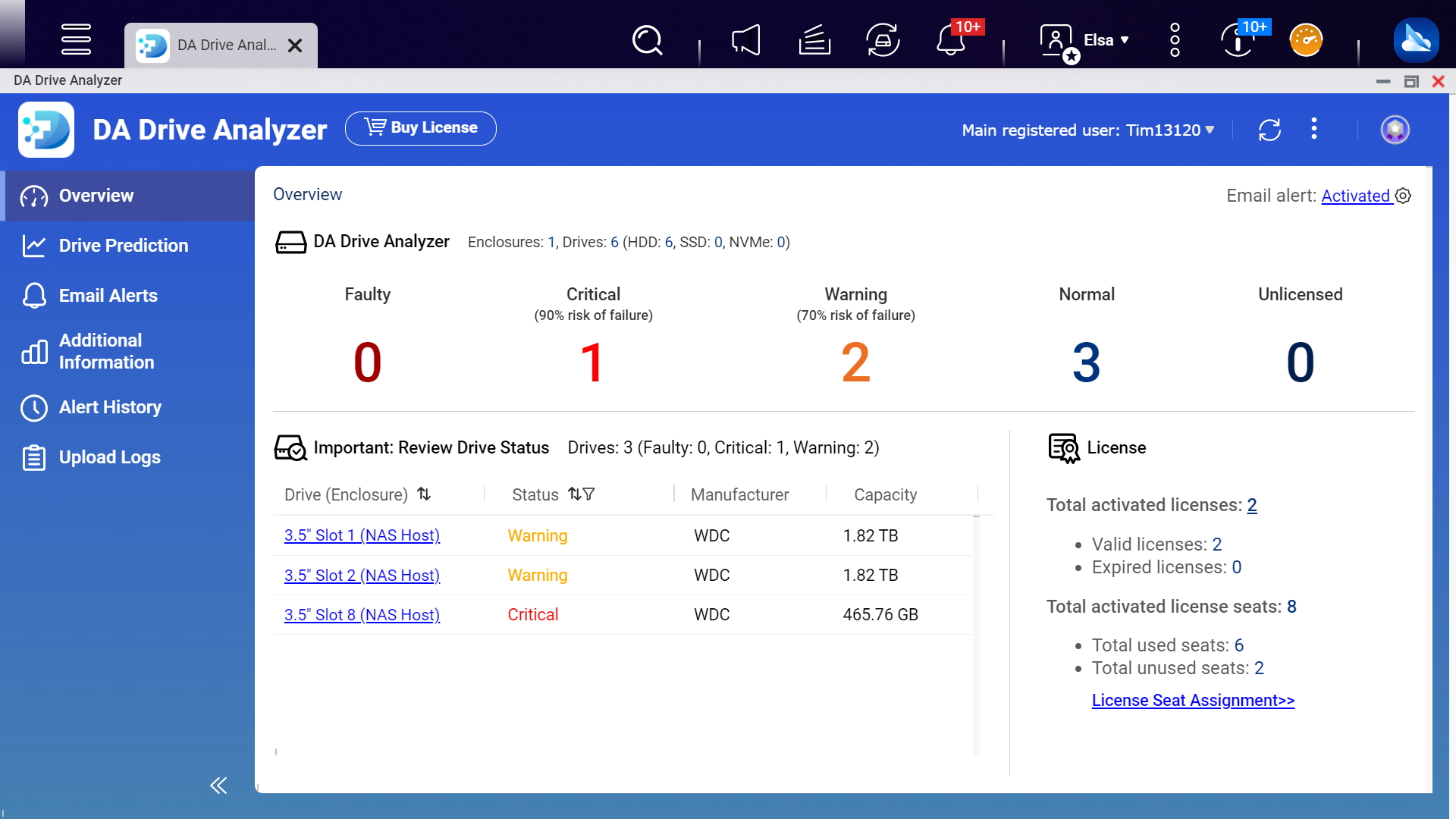

DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

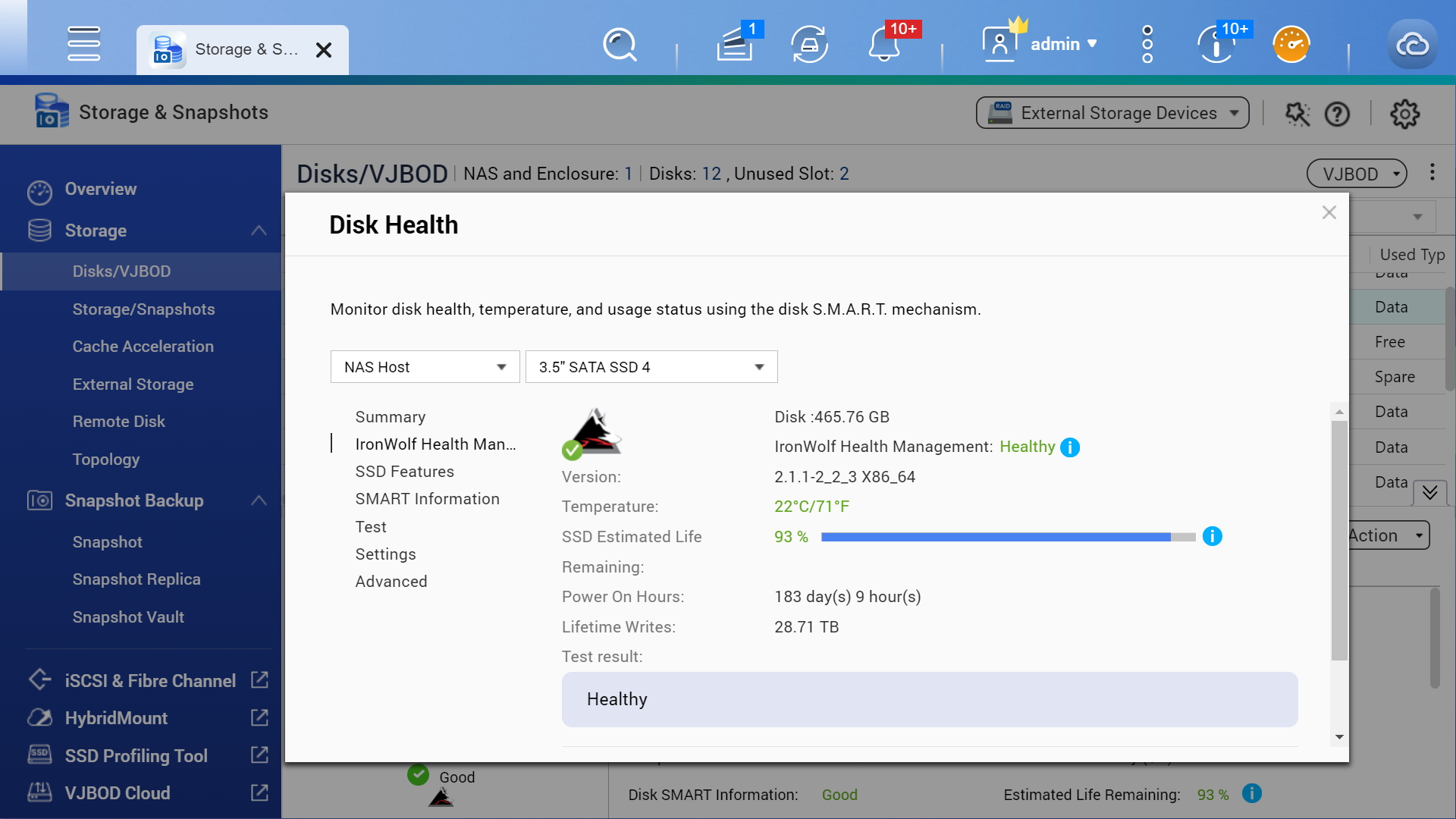

Seagate® IronWolf™ Health Management
When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
Specifications:
| TS-464U-RP-4G | TS-464U-RP-8G | |
|---|---|---|
| CPU | Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz | Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics | Intel® UHD Graphics |
| Floating Point Unit | ||
| Encryption Engine | (AES-NI) | (AES-NI) |
| Hardware-accelerated Transcoding | ||
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) | 8 GB on board (non-expandable) |
| Maximum Memory | 16 GB (2 x 8 GB) | 8 GB |
| Memory Slot |
2 x SODIMM DDR4 When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots. |
|
| Flash Memory | 4GB (Dual boot OS protection) | |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s | |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
|
| Hot-swappable | ||
| M.2 Slot | Optional via a PCIe adapter | |
| SSD Cache Acceleration Support | ||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) | |
| Wake on LAN (WOL) | ||
| Jumbo Frame | ||
| PCIe Slot |
1 Slot 1: PCIe Gen 3 x2 |
|
| USB 2.0 port | 2 | |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB3.2 Gen2 | |
| HDMI Output | 1, HDMI 1.4b | |
| LED Indicators | HDD 1-4, Status, LAN, Expansion, Power | |
| Buttons | Power, Reset | |
| Form Factor | 1U Rackmount | |
| Dimensions (H x W x D) | 1.7 × 16.93 × 18.86 inch | 1.7 × 16.93 × 18.86 inch |
| Weight (Net) | 17.9 lbs | 17.9 lbs |
| Weight (Gross) | 22.27 lbs | 22.27 lbs |
| Operating temperature | 0 - 40°C (32°F - 104°F) | |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) | |
| Power Supply Unit | 250W (x2), 100-240V | |
| Power Consumption: HDD Sleep Mode | 37.469 W | |
| Power Consumption: Operating Mode, Typical |
51.404 W Tested with drives fully populated. |
|
| Fan | 2 x 40mm, 12VDC | |
| System Warning | Buzzer | |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 | |
Note: Use only QNAP memory modules to maintain system
performance and stability. For NAS devices with more than one
memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance,
cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI
trade dress and the HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ
from the actual product. Due to differences in monitors, colors
of products may also appear different to those shown on the
site.
Designs and specifications are subject to change without
notice.
