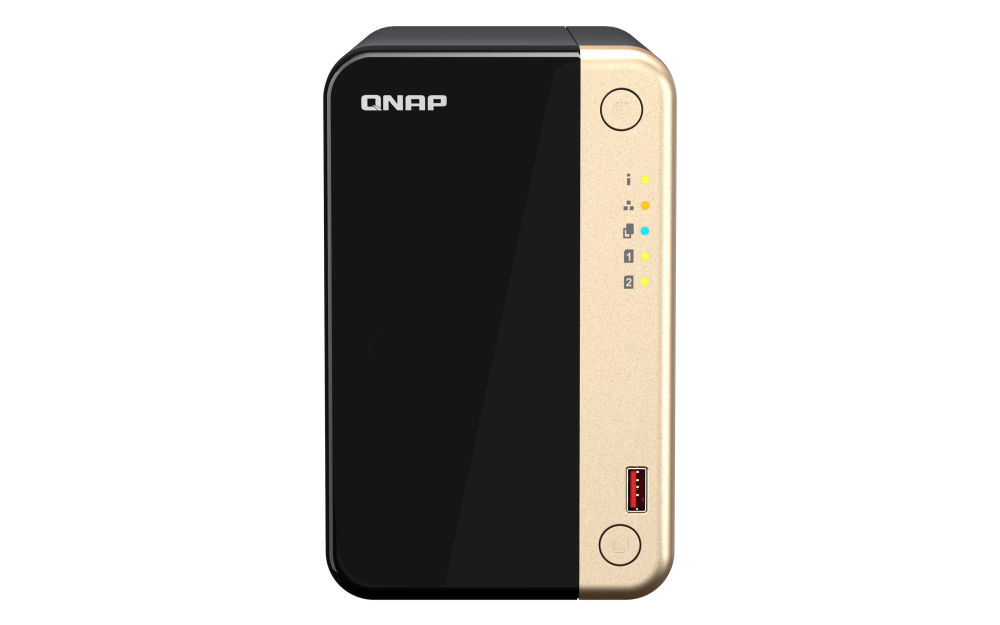

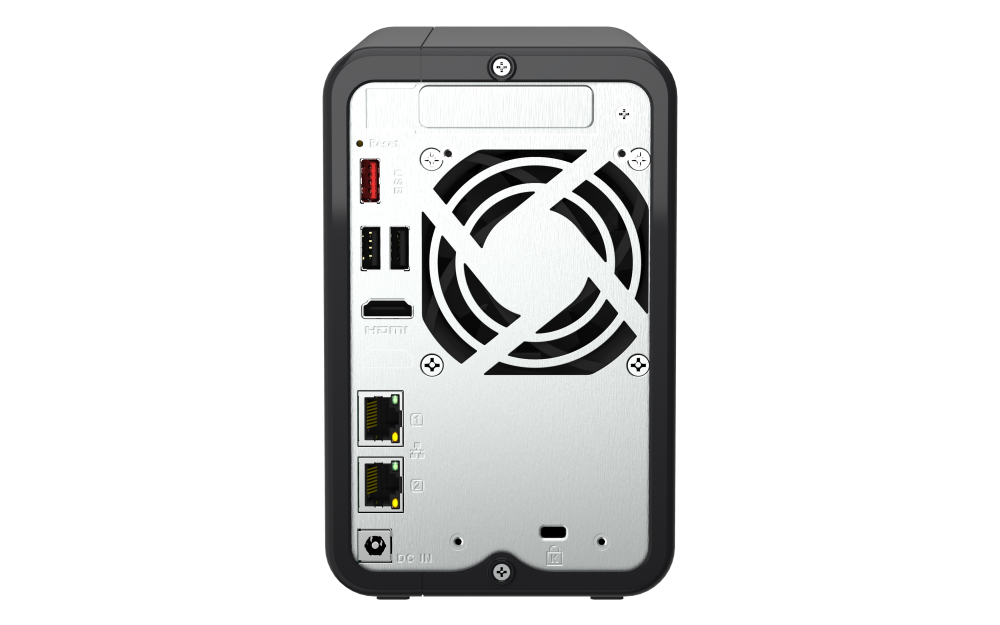

QNAP TS-264
Cost-effective 4-bay 10GbE NAS, designed to accelerate your workloads
2-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8 GB DDR4 onboard not expandable, 2 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe Gen 3 x1 slots, 2 x 2.5GbE, 1 x HDMI 2.0, 1 x PCIe Gen3 x2 slot, 2 x USB 3.2 Gen 2 Type-A + 2 x USB 2.0
Our Price: Request a Quote
Package Content
- QNAP TS-264
- Ethernet Cable x 1/li>
- AC Adapter x 1
- Power Cord x 1
- Flat head screw x 6 (for 3.5" HDD)
- Flat head screw x 6 (for 2.5" HDD)
- Quick Installation Guide
Overview:
Unlock the potential of 4-bay storage capacity and harness the speed of 10GbE with the TS-432X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-432X streamlines workflow efficiency without exceeding your budget.
Available Models
- TS-264-8G-
Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz, 8 GB SODIMM DDR4 (1 x 8 GB)
2.5GbE is a must!
TS-264 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
Quad-core for multitasking
Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking.
Smooth video conversion
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.
Upgrade to dual-port 10GbE
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed.
Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.
More M.2 NVMe SSDs
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.
Extend Hardware Warranty Up to 5 Years
The TS-264 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
2.5GbE NAS is a must in 2024
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, the TS-264 delivers up to 589 MB/s transfer speeds for fast data access workflow.
Tested in QNAP Labs. Figures may vary by environment.
Operating System:
The TS-264 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Features:
All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-453E, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
Container Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.
Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.
Hardware Specifications:
Download Datasheets| TS-264-8G | |
|---|---|
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 16 GB (2 x 8GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s |
| Drive Compatibility |
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2(2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches. |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2x Type-A |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 × 170 × 226.5 mm |
| Weight (Net) | 1.55 kg |
| Weight (Gross) | 2.61 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 60W adapter, 100-240V |
| Power Consumption: Disk Standby Mode | 18.288 |
| Power Consumption: Operating Mode, Typical | 29.086 W |
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
| Kensington Security Slot |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting. QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site. Designs and specifications are subject to change without notice.
