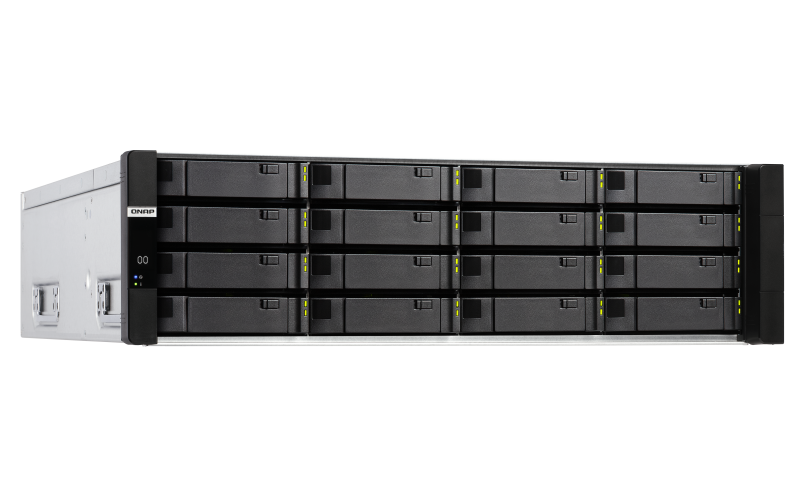

QNAP ES1686dc
Next-generation Enterprise ZFS NAS: High-performance and near-zero downtime high availability

QNAP Products
TS-h3077AFU
QNAP ES1686dc-2123IT-64G
16 Bay Enterprise ZFS NAS, SAS 12G/6G, Dual Controller, Xeon D-2123IT 1.9GHz, 64GB RAM, 14-LAN (4 SFP+ / 3 RJ45 for Each Controller), 10G-ready, iSCSI, Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, RAID TP, triple Mirror, max 512 GB RAM, PCIe expansion slot x2, redundant power suppluy, with Rail Kit
#ES1686dc-2123IT-64G
Our Price: Request a Quote
QNAP ES1686dc-2142IT-96G
16 Bay Enterprise ZFS NAS, SAS 12G/6G, Dual Controller, Xeon D-2142IT 1.9GHz, 96GB RAM, 14-LAN (4 SFP+ / 3 RJ45 for Each Controller), 10G-ready, iSCSI, Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, RAID TP, triple Mirror, max 512 GB RAM, PCIe expansion slot x2, redundant power suppluy, with Rail Kit
#ES1686dc-2142IT-96G
Our Price: Request a Quote
QNAP ES1686dc-2142IT-128G
16 Bay Enterprise ZFS NAS, SAS 12G/6G, Dual Controller, Xeon D-2142IT 1.9GHz, 128GB RAM, 14-LAN (4 SFP+ / 3 RJ45 for Each Controller), 10G-ready, iSCSI, Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, RAID TP, triple Mirror, max 512 GB RAM, PCIe expansion slot x2, redundant power suppluy, with Rail Kit
#ES1686dc-2142IT-128G
Our Price: Request a Quote

Please Note: All Prices are Inclusive of GST

Want to build a custom bundle? Contact us!

Package Content

  • ES1686dc Storage System
  • 6 x Ethernet Cables (1GbE)
  • 2 x Power Cords
  • 64 x Flat Head Screws (for 3.5" HDD)
  • 64 x Flat Head Screws (for 2.5" HDD)
  • E02 series (Chassis) rail kit, max. load 57kg: RAIL-E02
  • 1 x Console Cable (RJ11 to RS-232)
  • 2 x Battery Backup Unit for NVRAM write cache
  • Quick Installation Guide (QIG)

Overview:

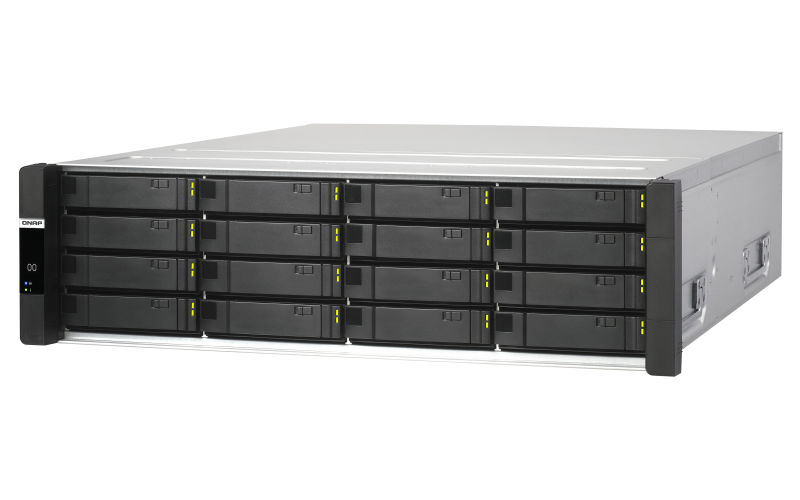

Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel® Xeon® D processors, dual active controllers, up to 512 GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression. Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.

Available Models

  • ES1686dc-2123IT-64G-
    Intel® Xeon® D-2123IT 4-core 2.20 GHz processor (burst up to 3.0 GHz) per controller, 32 GB RDIMM DDR4 ECC (4x 8 GB) per controller
  • ES1686dc-2142IT-96G-
    Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller, 48 GB RDIMM DDR4 ECC (4 x 4 GB+4 x 8GB) per controller
  • ES1686dc-2142IT-128G-
    Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller, 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller

Dual active-active controllers

Intel® Xeon® D dual active-active controllers provide supreme uptime and redundancy to ensure high availability.

Reliable & High-performance

PCIe expandability allows for 10GbE/25GbE adapters to increase application performance.

2 x PCIe Gen 3 slots

The TS-h3077AFU will be available and supported by QNAP for an extended period, up to 2030.


4 x 10GbE SFP+ ports

Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer.

Real-time SnapSync

Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.

Virtualization applications

Supports VMware® vSphere® 6.5, Windows Server® 2016 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.

Features:

Virtualization Certifications Supported by ES1686dc


VMWare Ready Logo
MS Hyper V Logo
Citrix Ready Logo
Veeam Ready Logo

Multi-level cache technology with both read and write

The ES1686dc simultaneously supports main memory read cache (L1 ARC), SSD secondary read cache (L2 ARC), and memory write cache (ZFS Intent Log) to meet performance demands for various enterprise applications.

  • Up to 512 GB main memory

    Each controller has eight RDIMM slots, allowing for up to 512 GB memory.
    Note: The main memory will retain 8GB for use by the write cache.

  • NVRAM cache reduces the risk of losing write cache data

    If unplanned power outages occur, the system can write cache data from the battery-protected DRAM to M.2 SSD through Copy To Flash (C2F) to ensure that data is not lost.
    Note: To ensure write cache data safety, it is recommended to annually replace the BBU. QNAP provides one-year warranty for the BBU.


QES 2.1.0: ZFS-based, and optimized for all flash performance

The ES1686dc features the QES (QNAP Enterprise Storage) 2.1.0 operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Not only does QES 2.1.0 provide reliable data protection, recovery, and business-class features, it is optimized for flash storage and is capable of driving outstanding performance for all-flash storage arrays to accelerate mission-critical services and eliminate challenges in VDI environments. QES 2.1.0 also comes with Quality of Service (QoS) capabilities that help ensure consistent primary storage performance in multi-application environments. Continuing the same user experience with the intuitive QTS operating system, QES provides business users with an easy learning curve for quick implementation within IT infrastructures.

overview-3
QES 2.1.0
QNAP Enterprise System
QTS
QNAP NAS System
OS Kernel FreeBSD Linux
File system ZFS Ext4
CIFS/FTP/NFS/iSCSI
End-to-end data integrity
Snapshot upper limit 65535 1024
Remote disaster backup and recovery SnapSync Snapshot Replica
Deduplication Deduplicate backup data at the source
(Hybrid Backup Sync 3.0)
Real-time data compression
Real-time data compaction
Application consistency Snapshot Agent
VSS Hardware Provider
(QNAP NetBak Replicator)
Snapshot Agent
VSS Hardware Provider
(QNAP NetBak Replicator)
Qtier (Auto Tiering)
App Center
Application services
(Virtualization Station, Web Server, multimedia service, etc.)
Application scenarios • Reliable storage for mission-critical business tasks.
• The perfect backup storage for the dual-controller Enterprise ZFS NAS.
• High-performance storage with SSD and Qtier technology for maximized cost-efficiency.
• Storage for hosting virtual machines and containerized applications.
• Application server using QTS services (Web server, VPN server, FTP server, etc).

Unleashed SSD potential - cost-effective and agile with ultimate performance

QES 2.1.0 features QNAP’s exclusive Write Coalescing algorithm that further optimizes all-flash performance in ZFS, providing a highly cost-effective all-flash solution for enterprise-class data management and mission-critical services.

  • Write Coalescing algorithm

    Transforms all random writes to sequential writes along with reduced I/O. It not only effectively increases random write performance for all-flash environments but also can improve SSD lifespans.

  • Software-defined over-provisioning

    Users can allocate an additional over-provisioning ratio for SSDs (from 1% to 60%) and Storage Pools (from 1% to 40%) for a constant performance boost of over 100%.


Deduplication and compression to maximize VDI storage performance

In VDI environments where there could be over 90% duplicate data from OS images and applications that are spread over virtual desktops, the QES-powered ES1686dc provides businesses with the most cost-effective remote virtual desktop platform and mission-critical information warehousing.

Data Deduplication Icon

Inline data deduplication
Block-based data deduplication optimizes storage usage and significantly decreases storage capacity requirements.

Compression Icon

Inline compression
Shrinks data size to reduce storage I/O workloads for improved performance. In VDI, deduplicated virtual desktops are easily cached to achieve optimal virtual desktop performance.

Compaction Icon

Inline compaction
Especially helpful for increasing SSD storage utilization efficiency when highly-repetitive data or massive small files (e.g. transaction logs of banks or e-commerce) are generated. It delivers higher cost efficiency of all-flash storage systems.


Self-Healing ensures data integrity and reliability

Designed with a focus on data integrity, a fundamental aspect of storage security and reliability, the QES-based ES1686dc uses its end-to-end checksums to detect and correct silent data corruption caused by hardware defects, bugs in firmware or metadata errors. If integrity violations are detected, QES automatically repairs the damage using data from the other mirror before the data is passed to applications.

overview-3

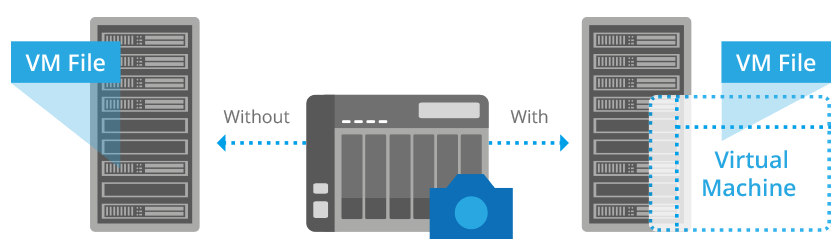

Create VMware/Windows backups for VSS-Aware applications using QNAP Snapshot Agent

QNAP Netbak Replicator is easy-to-use and VSS-aware backup software, helping businesses to create complete backups in data centers and virtualization environments without needing additional software.

Agent VMWare Image

Architecture:

Active-Active high availability with optimal storage efficiency

overview-2 Active-Standby single-controller system

With two HA systems you are paying twice the price and causing a load imbalance as workloads are only processed on the active system. A power outage could cause data loss, and the disconnected network invalidates the HA architecture.

overview-2Active-Active dual-controller system

Both controllers of the ES1686dc can carry traffic, along with Copy-To-Flash protection against power failure and the dual-path SAS interface. Besides conserving computing resources, a high-speed, uninterrupted, and high-availability storage service is also provided through communication protocols such as SMB, NFS and iSCSI.

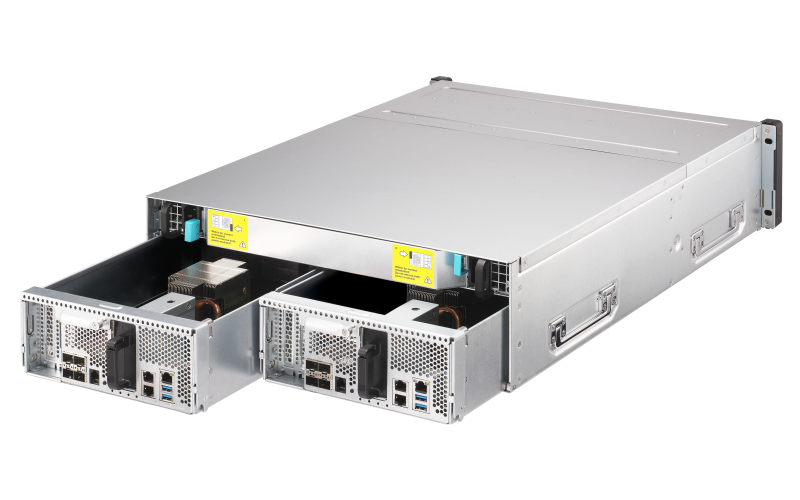

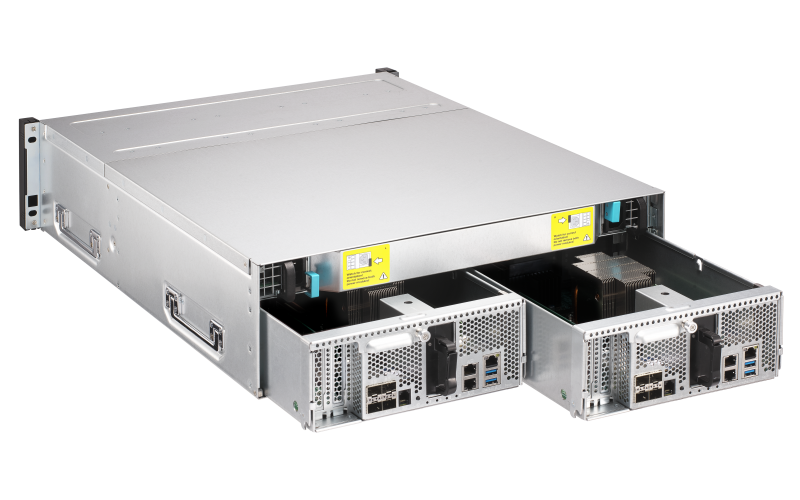

Dual controller NAS: High reliability and high availability

"Reliability" is the priority for mission-critical business applications. The ES1686dc adopts dual active-active controllers to provide the most reliable base for business IT storage.

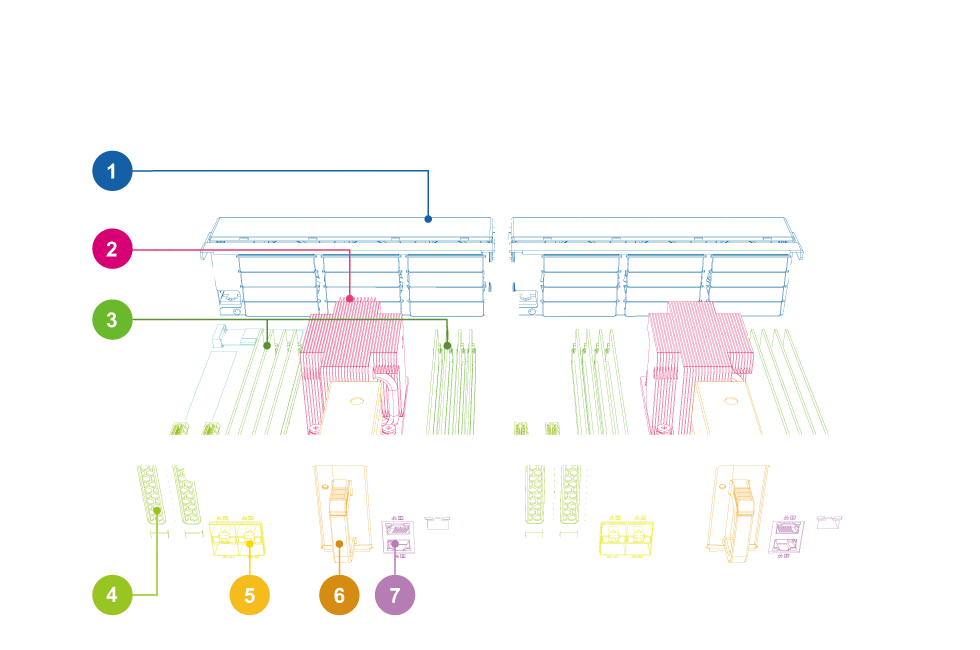

overview-3

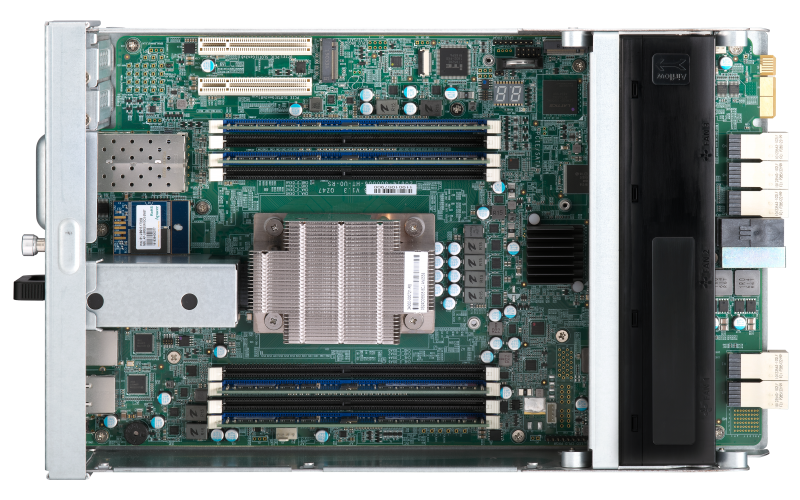

  1. 3x hot-swappable system fans
  2. Intel® Xeon® D-2100 series processor
  3. DDR4 2133 MHz ECC memory
  4. 2x PCIe Gen3 x8 slots
  5. 4x 10GbE SFP+ ports
  6. Battery Backup Unit (BBU)
  7. 3x Gigabit ports

Speed and Security:

Intel® Xeon® D dual-controller ensures high availability and failure-resistant service

Powered by two Intel® Xeon® D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (TL-R1620Sdc) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.

overview-3

PCIe expansion for 25GbE high-speed networks

The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/25GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing NVIDIA® Mellanox Smart NICs further adds support for iSER for improved VMware® virtualization performance.


High performance. High efficiency.

iSCSI Random 4K IOPS(10 GbE x 8)
Read: 178552 IOPS Write: 254828 IOPS
SMB Sequential Throughout (10 GbE x 8)
Read: 2201 MB/s Write: 5773 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Hardware Specifications:

  ES1686dc-2123IT-64G ES1686dc-2142IT-96G ES1686dc-2142IT-128G
CPU Intel® Xeon® D-2123IT 4-core 2.20 GHz processor (burst up to 3.0 GHz) per controller Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI) (AES-NI) (AES-NI)
System Memory 32 GB RDIMM DDR4 ECC (4x 8 GB) per controller 48 GB RDIMM DDR4 ECC (4 x 4 GB+4 x 8GB) per controller 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
Maximum Memory 8 x R-DIMM/LR-DIMM DDR4
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Memory Slot 8 x R-DIMM/LR-DIMM DDR4
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory 4GB (Dual boot OS protection)

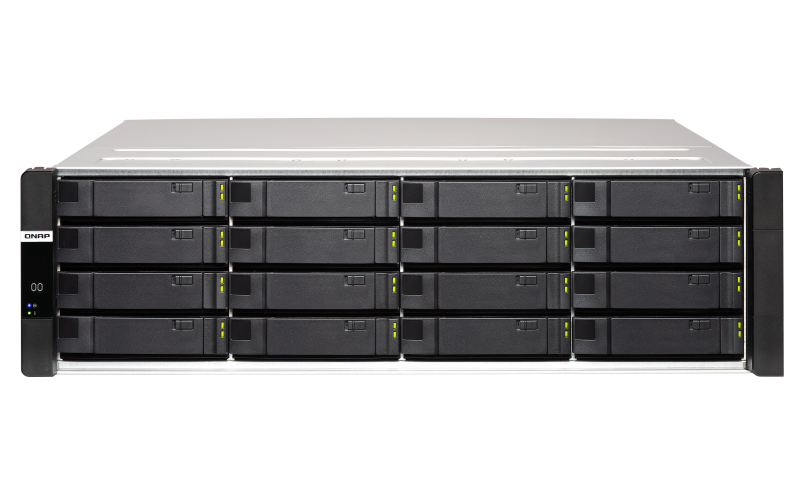

Drive Bay 16 x 3.5-inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SAS hard disk drives
2.5-inch SAS hard disk drives
2.5-inch SAS solid state drives

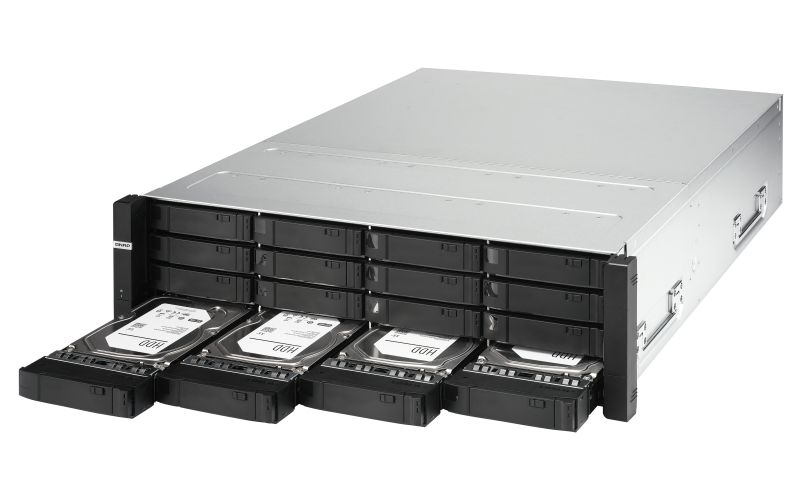

Hot-swappable
SSD Cache Acceleration Support
Read cache only

Read cache only

Read cache only
Cache for Copy To Flash (C2F) 1 per each controller (64GB M.2 SSD)

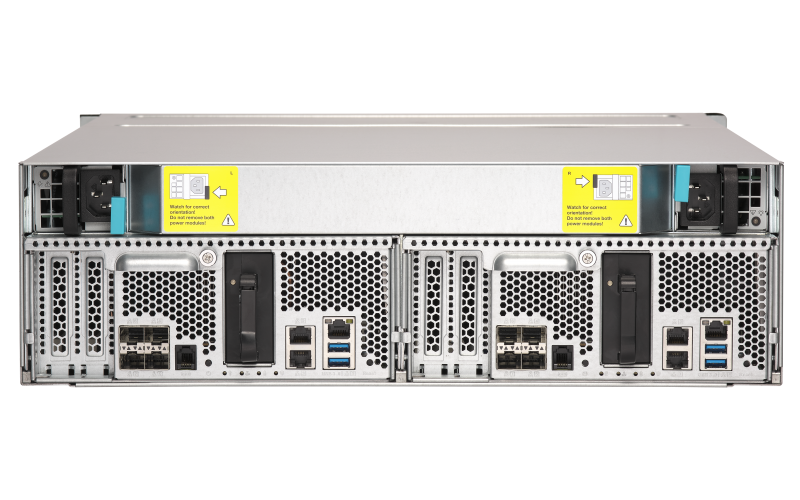

Gigabit Ethernet Port (RJ45) 3 for each controller (assign one for remote management)
10 Gigabit Ethernet Port 4 x 10GbE SFP+ for each controller
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2 per controller
Slot 1: PCIe Gen 3 x8 (CPU)
Slot 1: PCIe Gen 3 x8 (CPU)

Card dimensions for PCIe slot 1~Slot 2:215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 2 per each controller
Form Factor 3U Rackmount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power, Reset
Dimensions (HxWxD) 5.2 × 17.57 × 23.14 inch
Weight (Net) 66.62 lbs
Weight (Gross) 76.99 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap Power Vin:90~264VAC;770W
Power Consumption: Operating Mode, Typical 500.87 W
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
System Warning Buzzer
Standard Warranty 5
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Documentation:



Download the QNAP ES1686dc-2123IT-64G Datasheet (.PDF)

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.



Download the QNAP ES1686dc-2142IT-96G Datasheet (.PDF)

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.



Download the QNAP ES1686dc-2142IT-128G Datasheet (.PDF)

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Warranty Icon

Standard 5 year warranty

The ES1686dc is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
