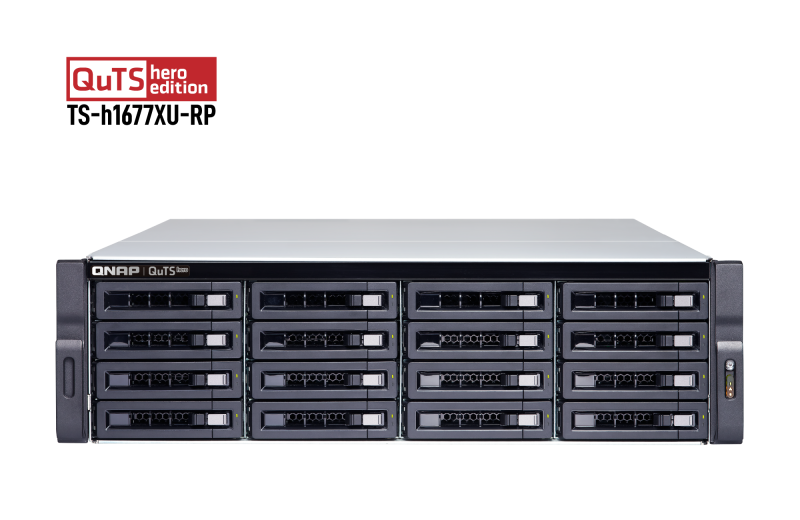

QNAP TS-h1677XU-RP
Highly-reliable ZFS storage with an AMD Ryzen™ processor, 10GbE connectivity, and PCIe expandability
(Supports QuTS hero or QTS system)

QNAP Products
Enterprise Storage Products
QNAP 3U 16-Bay QTS hero NAS/iSCSI IP-SAN, AMD Ryzen™ 7 3700X 8C/16T 3.4 GHz, 32GB DDR4 RAM, 1GbE*2 , 10GbE*2 SFP+
AMD Ryzen™ 7 3700X 8C/16T 3.4 GHz Turbo Core 4.4 GHz, 32GB DDR4 RAM (4 x Long-DIMM Slots, max. 128GB) 16x 2.5"/3.5" SATA HDD/SSD, 2 x 1 GbE, 2 x 10GbE SFP+ LAN, 4 x PCIe expansion slot, 2 x USB 3.2 Gen 2 type-C & type-A, 4 x USB 3.2 Gen 1, 500W redundant power
#TS-h1677XU-RP-3700X-32G
Our Price: Request a Quote

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Package Content

  • QNAP TS-h1677XU-RP Storage
  • 1 x 10GBASE-T Ethernet cable
  • 2 x Power cords
  • 64 x Flat head screw (for 3.5" HDD)
  • 64 x Flat head screw (for 2.5" HDD)
  • Quick Installation Guide

Overview:

The TS-h1677XU-RP QuTS hero NAS is powered by an AMD Ryzen™ 7 processor that delivers supreme system and virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the ZFS-based QuTS hero operating system, the TS-h1677XU-RP prioritizes data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, SNMP protocol, and Azure AD Domain Services. Used as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup/recovery solution, the TS-h1677XU-RP helps your business achieve the outstanding service-level agreement performance.



Available Models

  • TS-h1677XU-RP-3700X-32G-
    AMD Ryzen™ 7 3700X 8 cores/16 threads 3.6 GHz processor (Turbo Core 4.4 GHz), 32 GB DDR4 memory (2 x 16 GB), redundant power supply

10GbE-SFP

Two built-in 10GbE SFP+ ports support iSER and empower bandwidth-demanding applications for virtualization, intensive file access, and large backup/restoration tasks.

SSD-drive

SSD cache acceleration improves random read performance to boost IOPS-demanding applications.

PCIe

PCIe slots allow for installing 5/10/25GbE adapters, QM2 cards, or Fibre Channel cards to increase application potential and performance.


virtual machines

Supports storage for virtualization, and directly hosts virtual machines and containers.

cloud-storage

Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

backup

Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V).

Features:

Absolute performance with AMD Ryzen™ 7

Powered by a high-performance AMD Ryzen™ 7 3700X 8 cores/16 threads 3.6 GHz processor (Turbo Core 4.4 GHz) with AES-NI encryption acceleration and up to 128 GB (4 x 32 GB) DDR4 RAM, the TS-h1677XU-RP delivers aggressive yet power-smart performance to meet multi-tasking demands - including the ability to run multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-h1677XU-RP provides dependable high performance in demanding business IT environments as a cost-efficient NAS solution.

amd-ryzen-7 image


10GbE connectivity optimizes data transfer and VMware virtualization with iSER

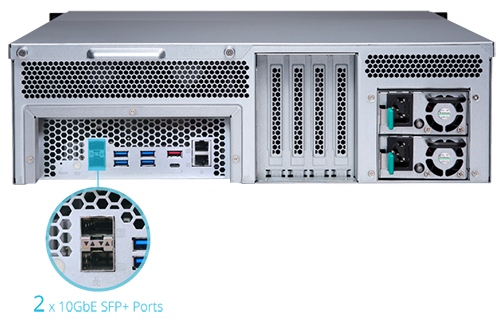

The TS-h1677XU-RP provides two 10GbE SFP+ SmartNIC ports (with an NVIDIA® Mellanox ConnectX-4 Lx SmartNIC controller) that support iSCSI Extensions for RDMA (iSER) to increase data transfer performance and offload CPU workloads between a NAS and ESXi server. With Port Trunking for up to 20Gb/s bandwidth and failover support, the TS-h1677XU-RP satisfies demanding applications including virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. The TS-h1677XU-RP is also ideally matched with QNAP's managed and unmanaged 10GbE switches to form high-speed, secure and scalable network environments without going over budget.

high-reliability-design


PCIe expansion for 25GbE connectivity, storage expansion, or graphics cards

Install various expansion cards based on your needs to fulfill greater I/O capabilities.

5/10/25GbE network cards

Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.

QM2 cards

Adds M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

SAS/SATA expansion cards

Designed for connecting the TS-h1677XU-RP to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.

Graphics cards

Supports high-profile graphics cards to streamline video editing, transcoding, or enable GPU pass-through to virtual machines.

Note: When Virtualization Station uses the graphics card, the TS-h1677XU-RP will temporarily stop hardware transcoding acceleration for QuTS hero (or vice versa).


ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key Data reduction improves storage efficiency and performance Multi-level cache technology
QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported. Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance. Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection QSAL (QNAP SSD Antiwear Leveling) enhances data protection App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h1677XU-RP.

Inline data deduplication, compression, and compaction drives Big Data storage efficiency

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h1677XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

big-data-storage


Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Note: SnapSync will be available from QuTS hero h4.5.2.

real-time-snapSync


The TS-h1677XU-RP also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.


Snapshots multiply backup protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h1677XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.


All-in-one virtual machine and container hosting solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Container Station

Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.


License-free VMware® and Hyper-V backup appliance

With Hyper Data Protector, the TS-h1677XU-RP becomes an agentless backup tool for VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.


Move business data to the cloud and enjoy low-latency access to cloud-based data

The TS-h1677XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.

HybridMount

HybridMount File-Based Cloud Gateway

Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD

VJBOD Cloud block-based cloud gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.


Subscribe to QVR Elite surveillance solution for 24/7 security

QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TS-h1677XU-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows®/Mac® or mobile devices, taking full control over monitored areas becomes more convenient and easier.


Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1677XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.


Flexible and economical storage expansion

The storage capacity of the TS-h1677XU-RP can be expanded by connecting up to sixteen SAS 12Gb/s JBODs (TL-R1620Sep-RP or TL-R1220Sep-RP) using PCIe QXP expansion cards, or by using USB-based expansion enclosures. NAS storage expansion management is made easy with the user-friendly Storage & Snapshots Manager app.


Extend hardware warranty up to 5 years

The TS-h1677XU-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.


Switch operating systems for higher everyday performance

The TS-h1677XU-RP also supports QTS - QNAP's standard NAS operating system - that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1677XU-RP.

Note: QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h1677XU-RP before switching from QuTS hero to QTS.

ui_quts-hero-to-qts


More productivity applications

Boxafe

Boxafe

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

QuObjects

QuObjects

A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

qsirch-icon

Qsirch

Designed for object service developers; allows for creating high-performance S3 compatible development environments on a NAS to simplify service development workflows from testing to production.

Hardware Specifications:

  TS-h1677XU-RP-3700X-32G
CPU AMD Ryzen™ 7 3700X 8-core/16-thread 3.6 GHz processor, Turbo Core 4.4 GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 32 GB UDIMM DDR4 (2 x 16GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x Long-DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

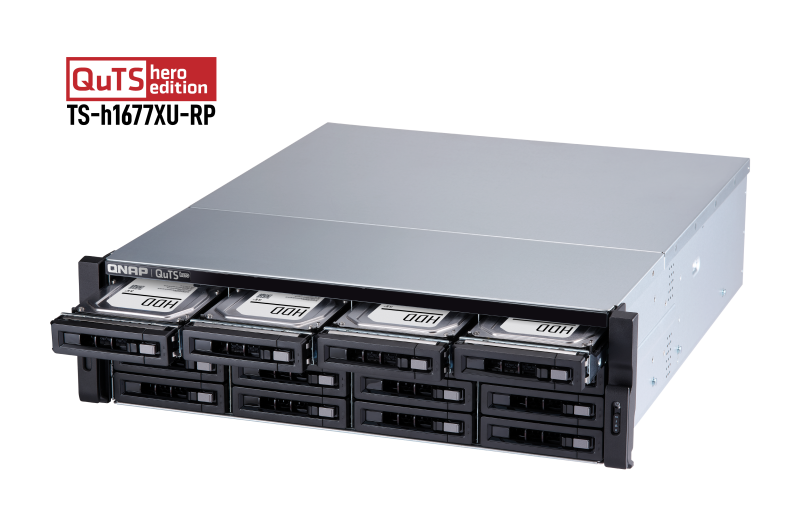

Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*
Slot 3: PCIe Gen 3 x8 or PCIe Gen 3 x4**
Slot 4: PCIe Gen 3 x4

*Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use.
***PCIe slot 4 is preinstalled with a 10GbE network adapter
USB 3.2 Gen 1 port 4
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 3U Rackmount
LED Indicators HDD 1-16, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 5.12 x 18.94 x 22.58 inch
Weight (Net) 33.64 lbs
Weight (Gross) 47.13 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 500W(x2), 100-240V
Power Consumption: Operating Mode, Typical 136.45 W
Tested with drives fully populated
Fan System fan: 4 x 92mm, 12VDC
Sound Level 46.6 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 5000
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Top-class hardware engineering with high I/O expandability

The TS-h1677XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification requirements.

QNAP TS-h1677XU-RP Hardware

1 AMD Ryzen™ 7 processor AMD Ryzen™ 7 3700X 8 cores/16 threads 3.6 GHz processor (Turbo Core up to 4.4 GHz) delivers high computing power.
2 Up to 128 GB DDR4 memory Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 128 GB RAM.
3 2x 10GbE SFP+ ports 10GbE SFP+ ports support NVIDIA® Mellanox ConnectX-4 Lx SmartNIC features.
4 USB 3.2 Gen 1 / USB 3.2 Gen 2 ports Supports external hard drives and uninterruptible power supplies. The USB 3.2 Gen 2 port provides data transmission speeds up to 10Gb/s, significantly boosting data transfer performance.
5 2x Gigabit Ethernet ports Ideal for service binding, port trunking, and MPIO configurations.
6 Four PCIe expansion slots Supports 5/10/25GbE network expansion cards, QM2 cards, storage expansion cards, and Fibre Channel cards for greater application potential.
7 Redundant power supply Redundant 550 watt power supplies ensure continuous system uptime.
8 Smart cooling Monitors system temperatures and automatically adjusts fan speeds.
